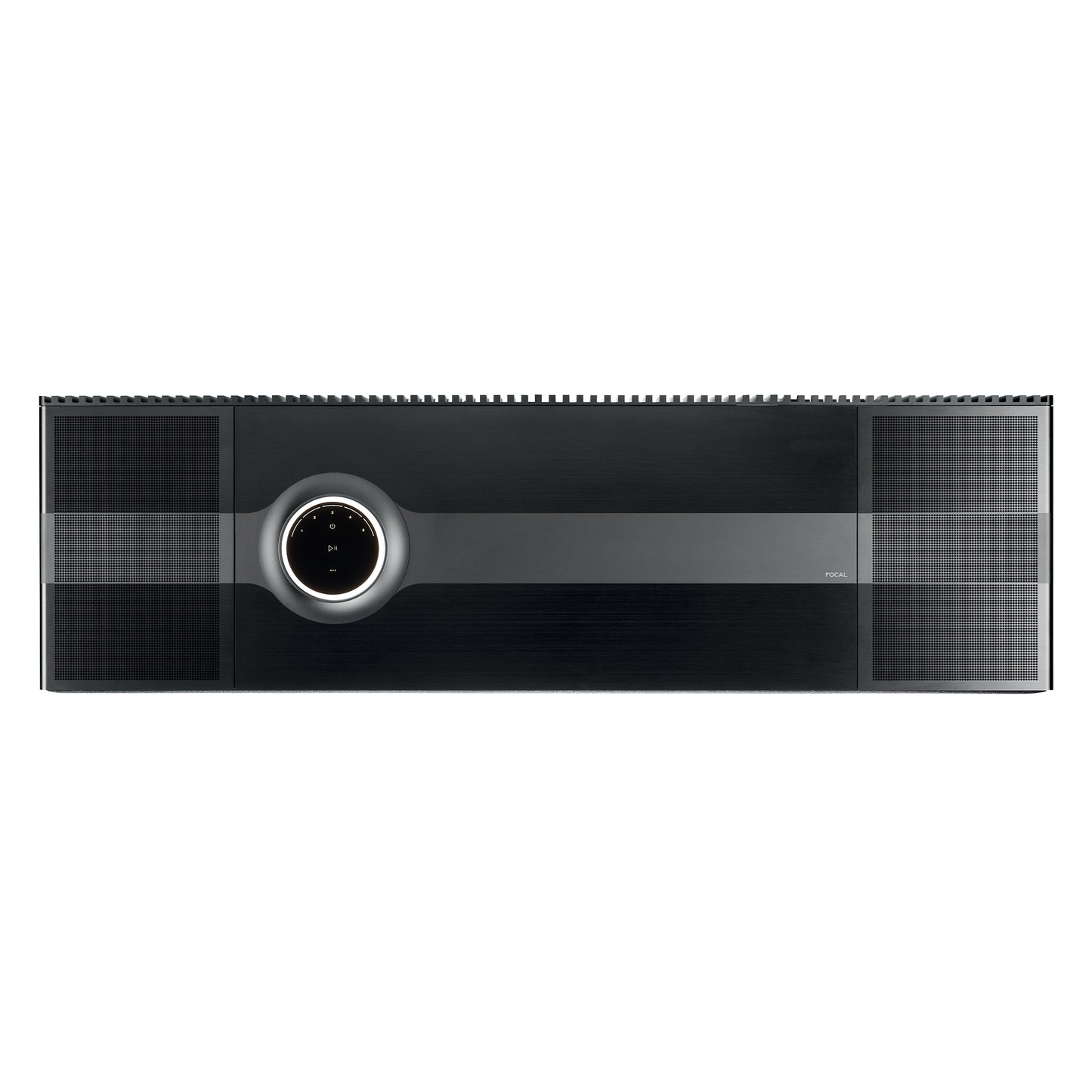

Focal Mu-so Hekla All-in-One System

15-driver Dolby Atmos sound, 660 W of Naim-developed class-D amplification, and ADAPT room calibration

Focal Mu-so Hekla brings immersive sound to films, music, and video games in a single all-in-one system. Its 15-driver configuration places seven drivers across the front, four along the sides, and four on top to reproduce compatible Dolby Atmos content in configurations up to 7.1.2 without the complexity of a conventional multichannel speaker system.

Developed collaboratively by Focal and Naim engineers, Mu-so Hekla combines Focal’s acoustic engineering with amplification and streaming technology from Naim. Three front-firing woofers each receive 60 W, while the remaining 12 drivers each receive 40 W, providing 660 W of total class-D amplification. The system delivers a frequency response of 30 Hz–20 kHz and a peak output of 108 dB SPL at 1 m.

Sound Tailored to Your Room

Focal’s ADAPT (Adaptive Acoustic Personal Tuning) technology adjusts Mu-so Hekla’s performance to suit its surroundings. Enter the distances between the system, the walls, the ceiling, and the listening area in the Focal & Naim app, and ADAPT calibrates the sound for the room.

The app also provides five Audio Modes for different content and listening situations: Dolby Movie, Dolby Music, Dolby Night, Sphere Music, and Sphere Movie. Focal and Naim’s Sphere modes combine beamforming and crosstalk-cancellation technologies to create an immersive presentation from stereo material.

Streaming and Multiroom Audio

Mu-so Hekla uses the Naim Pulse Platform to provide access to Qobuz, TIDAL, Spotify Connect, internet radio, Apple AirPlay 2, Google Cast, Bluetooth, and UPnP. It supports high-resolution audio up to 32-bit/384 kHz and DSD128, as well as multichannel streaming from compatible services.

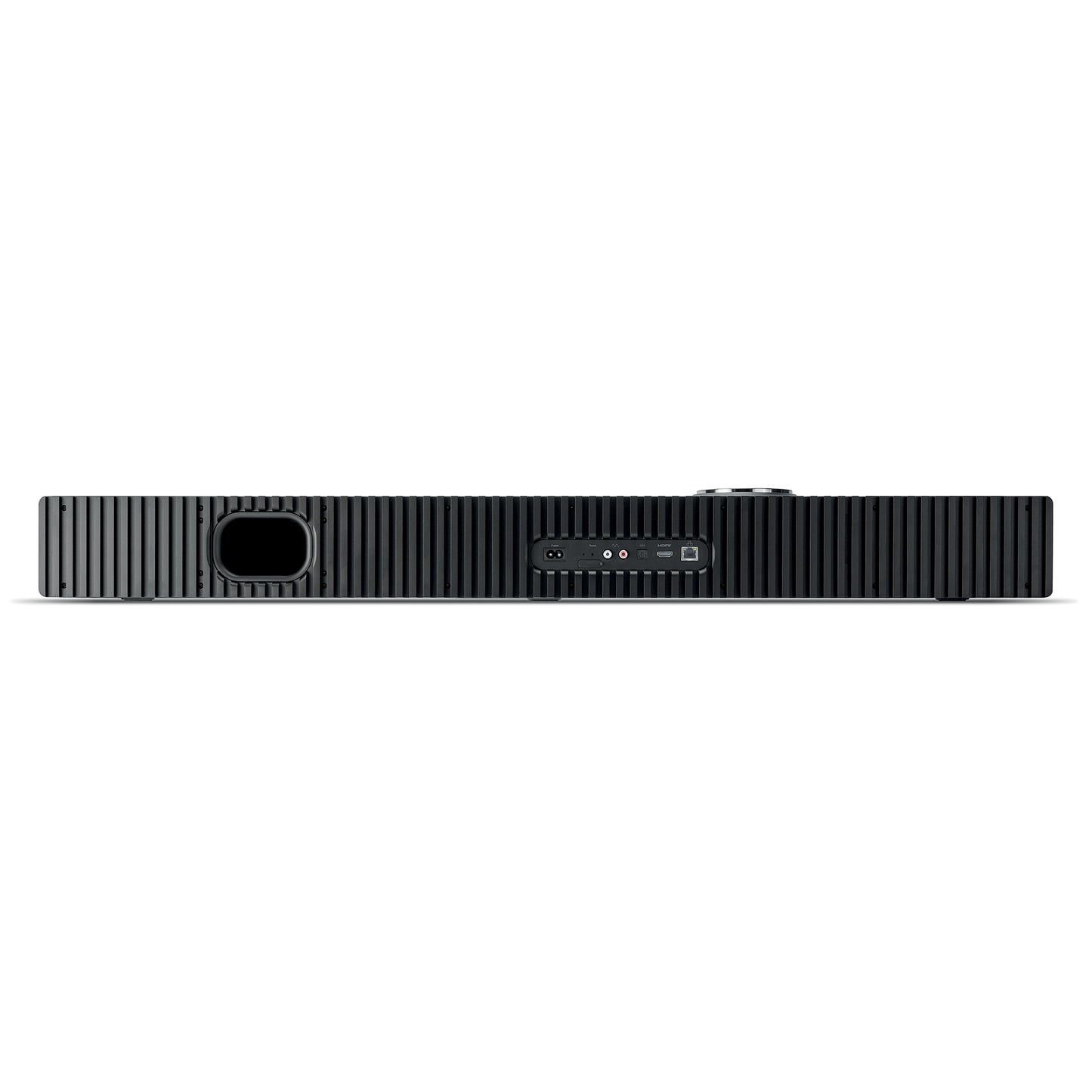

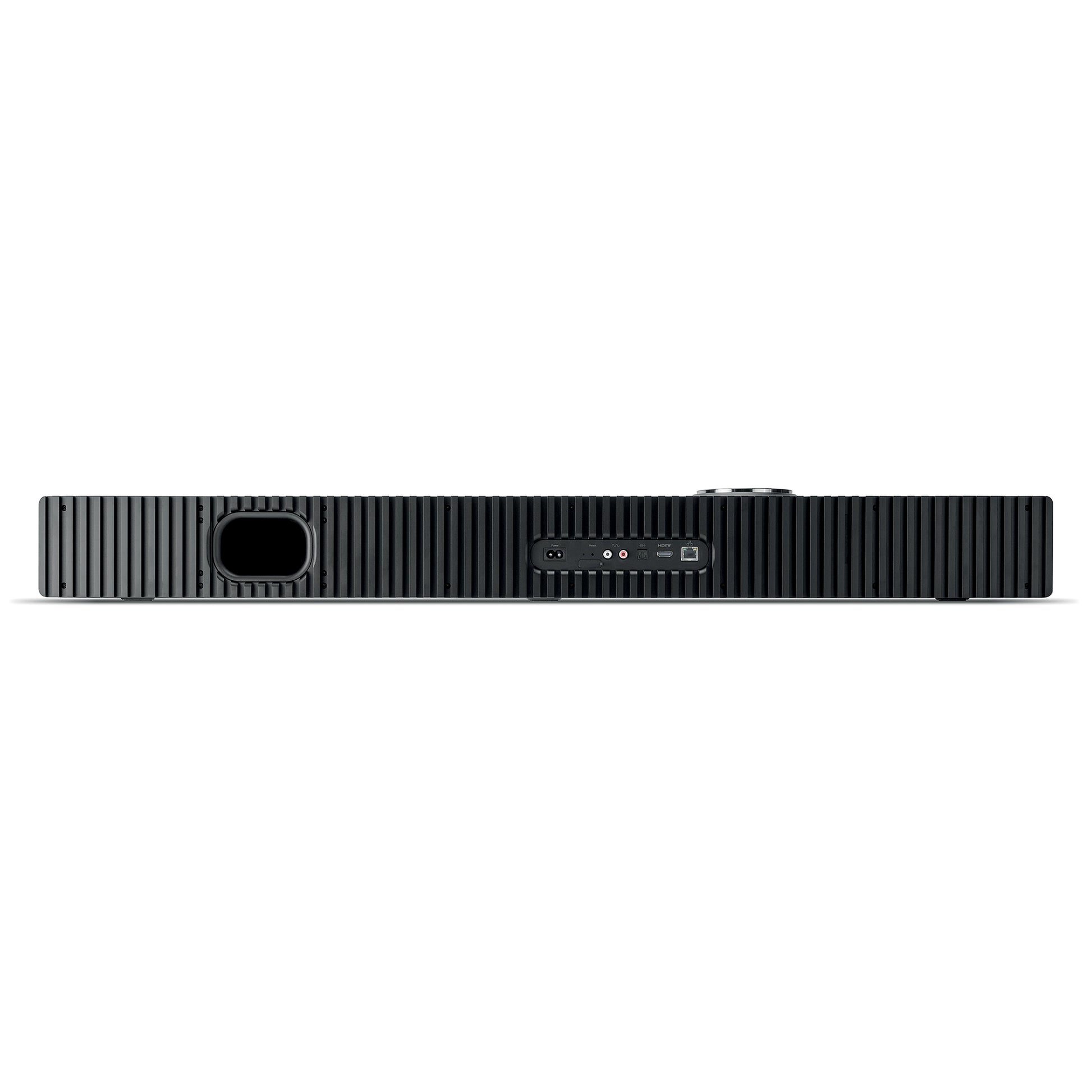

HDMI eARC connects the system to a compatible television, while an optical TOSLINK input accommodates another digital source. An RCA subwoofer output allows the system to be expanded with an external powered subwoofer. Mu-so Hekla can also synchronize with as many as 31 additional Focal and Naim streaming products for a multiroom system of up to 32 devices.

Intuitive Control

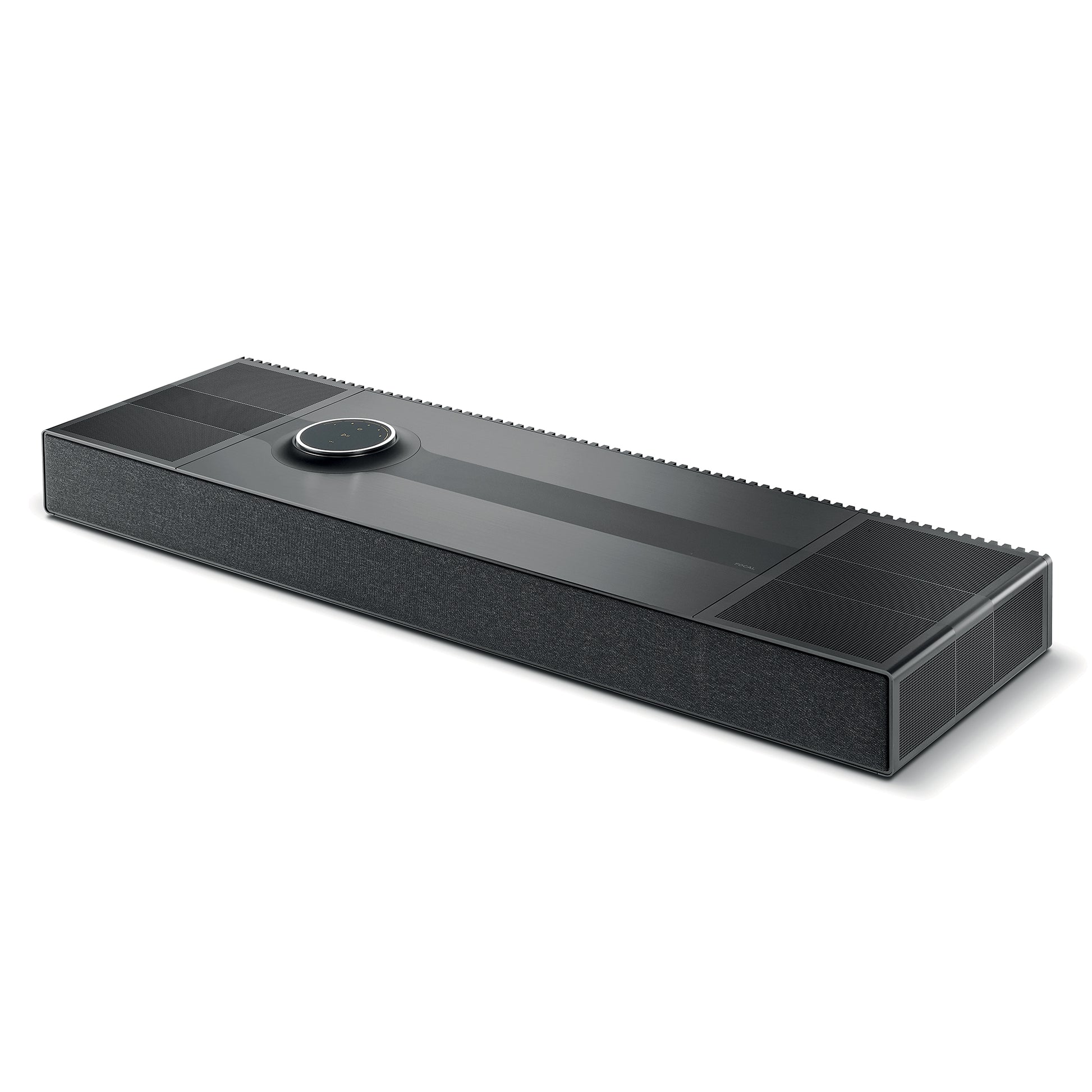

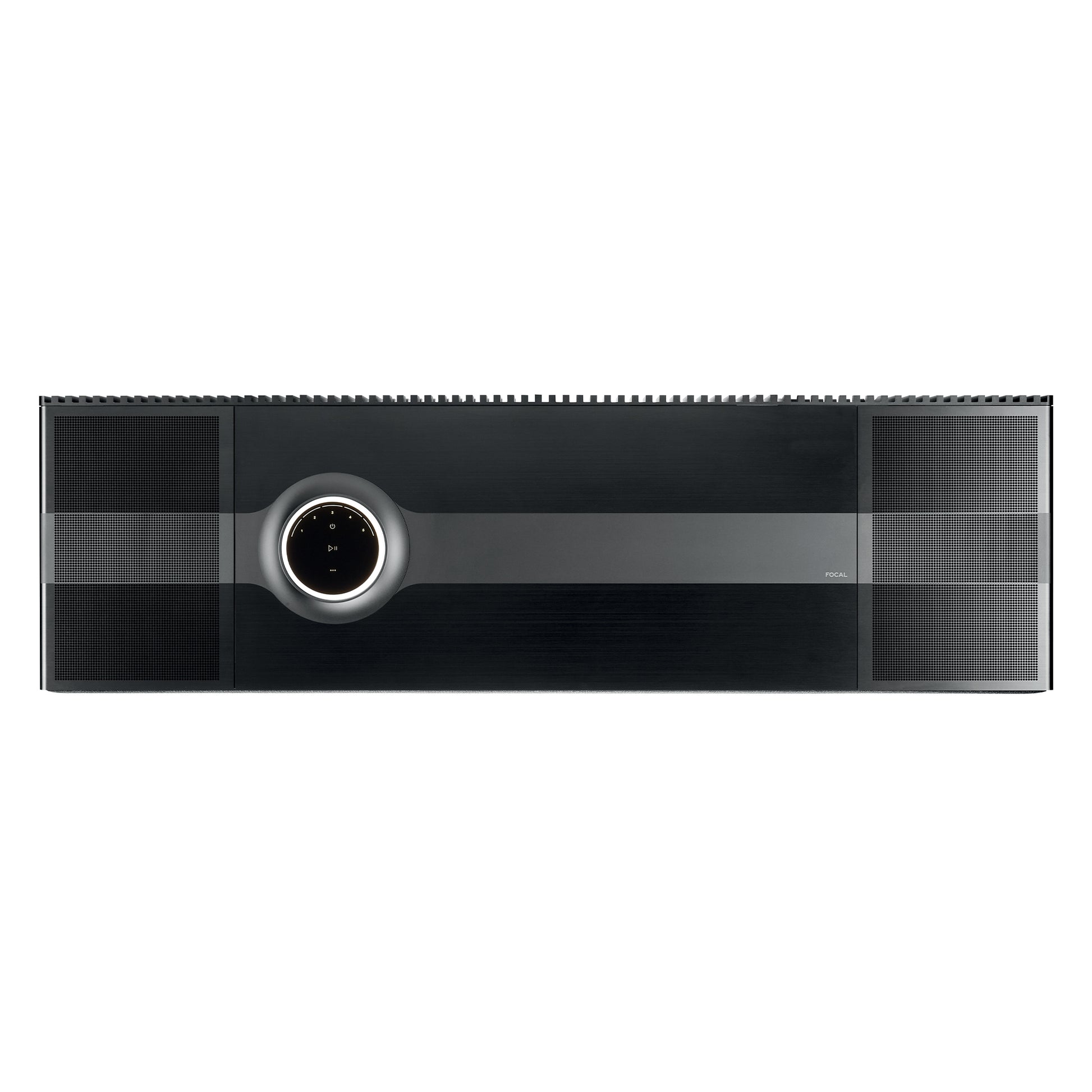

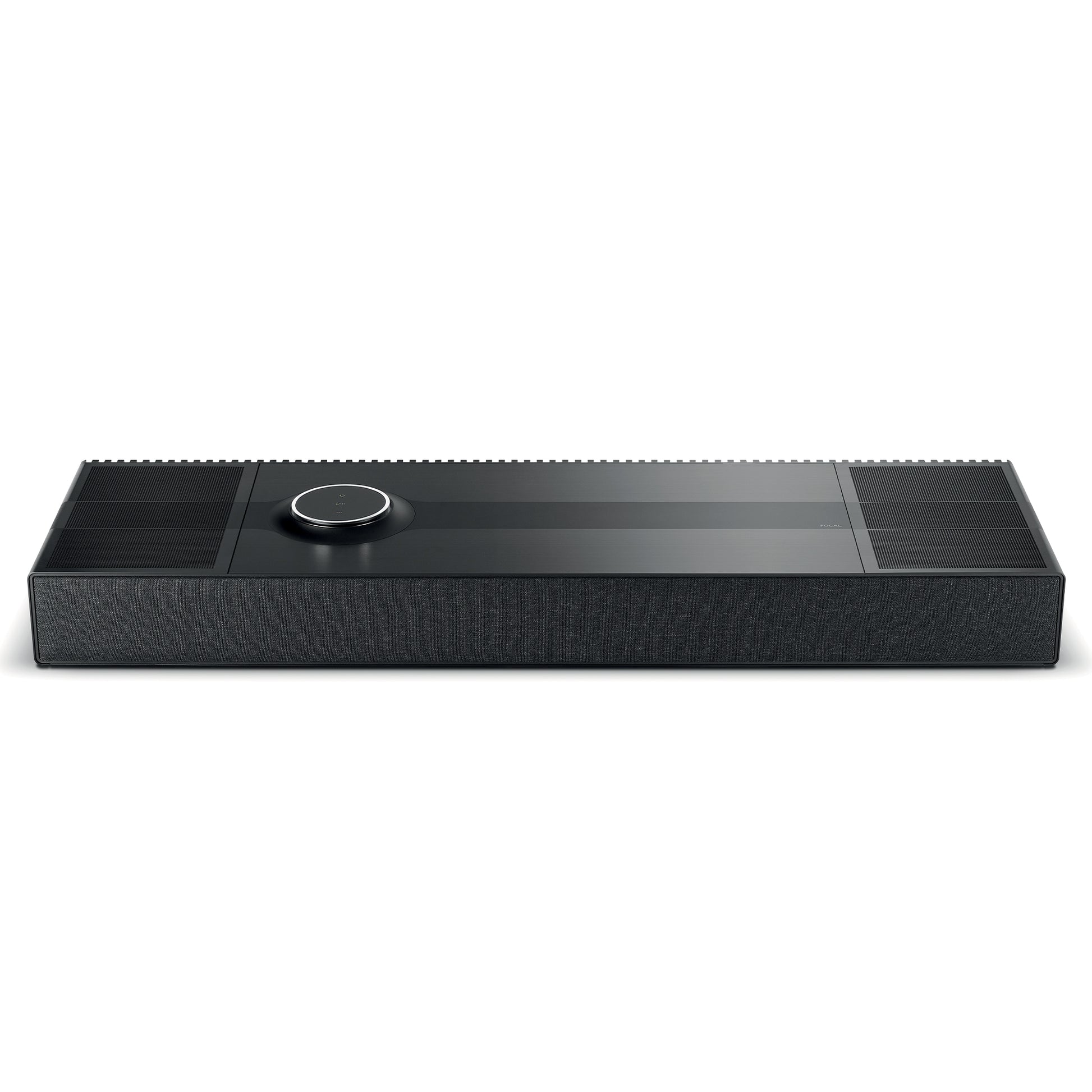

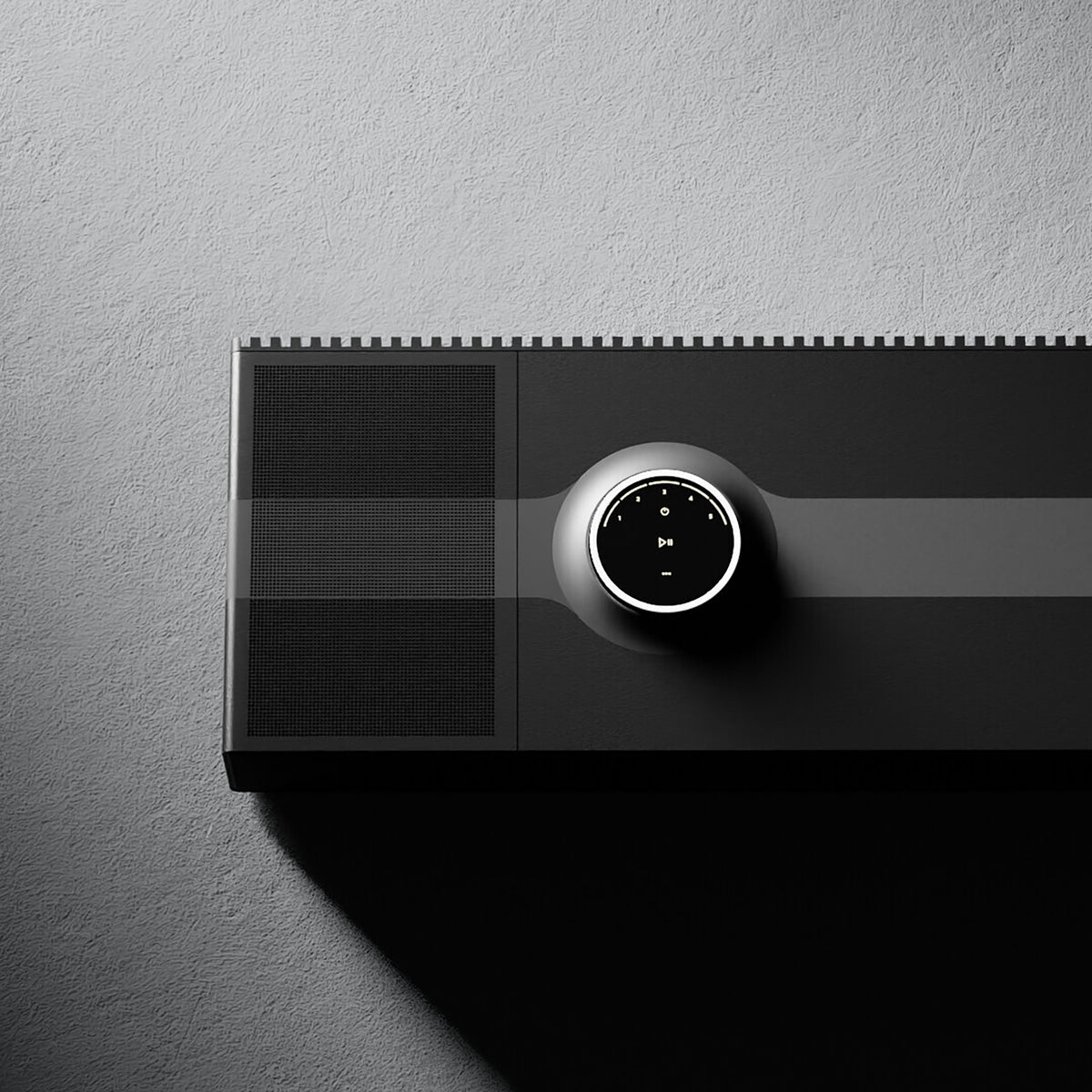

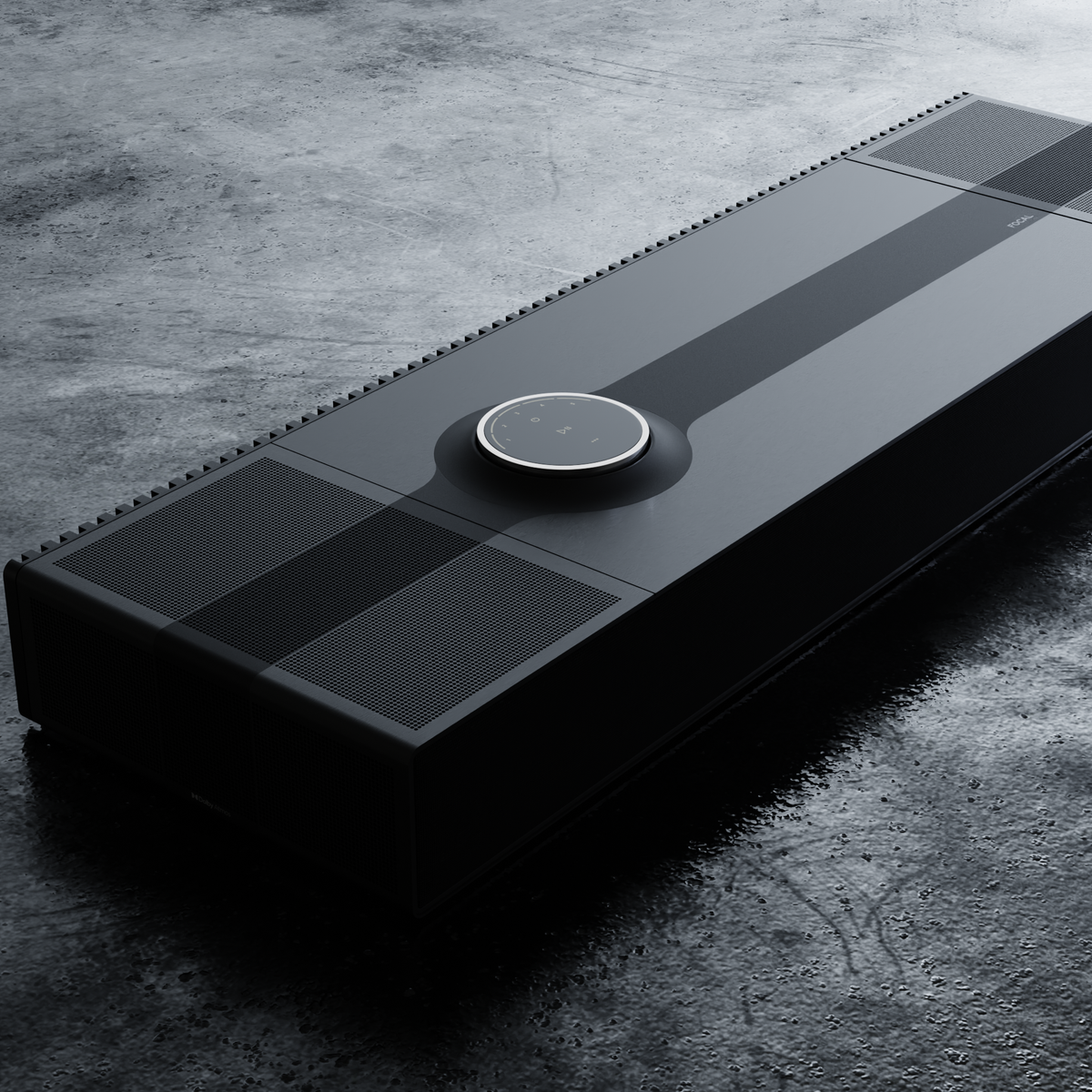

The brushed and sandblasted black aluminum enclosure incorporates perforated aluminum grilles and a tactile rotary control with a proximity sensor. Playback and system settings can also be managed through the Focal & Naim app for iOS and Android, compatible smartwatches, and supported voice assistants.

Features

• 15-driver immersive speaker system with Dolby Atmos
• Supports configurations up to 7.1.2
• 660 W of total class-D amplification developed by Naim Audio
• Seven front, four side-firing, and four upward-firing drivers
• Focal ADAPT room-calibration technology
• Dolby Movie, Dolby Music, Dolby Night, Sphere Music, and Sphere Movie modes
• HDMI eARC with CEC and optical TOSLINK inputs
• RCA output for an external powered subwoofer
• Qobuz, TIDAL, Spotify Connect, Apple AirPlay 2, Google Cast, Bluetooth, internet radio, and UPnP
• Wi-Fi 6 and Gigabit Ethernet connectivity
• Multiroom synchronization for up to 32 Focal and Naim streaming products
• Focal & Naim app control for iOS and Android

Included Accessories

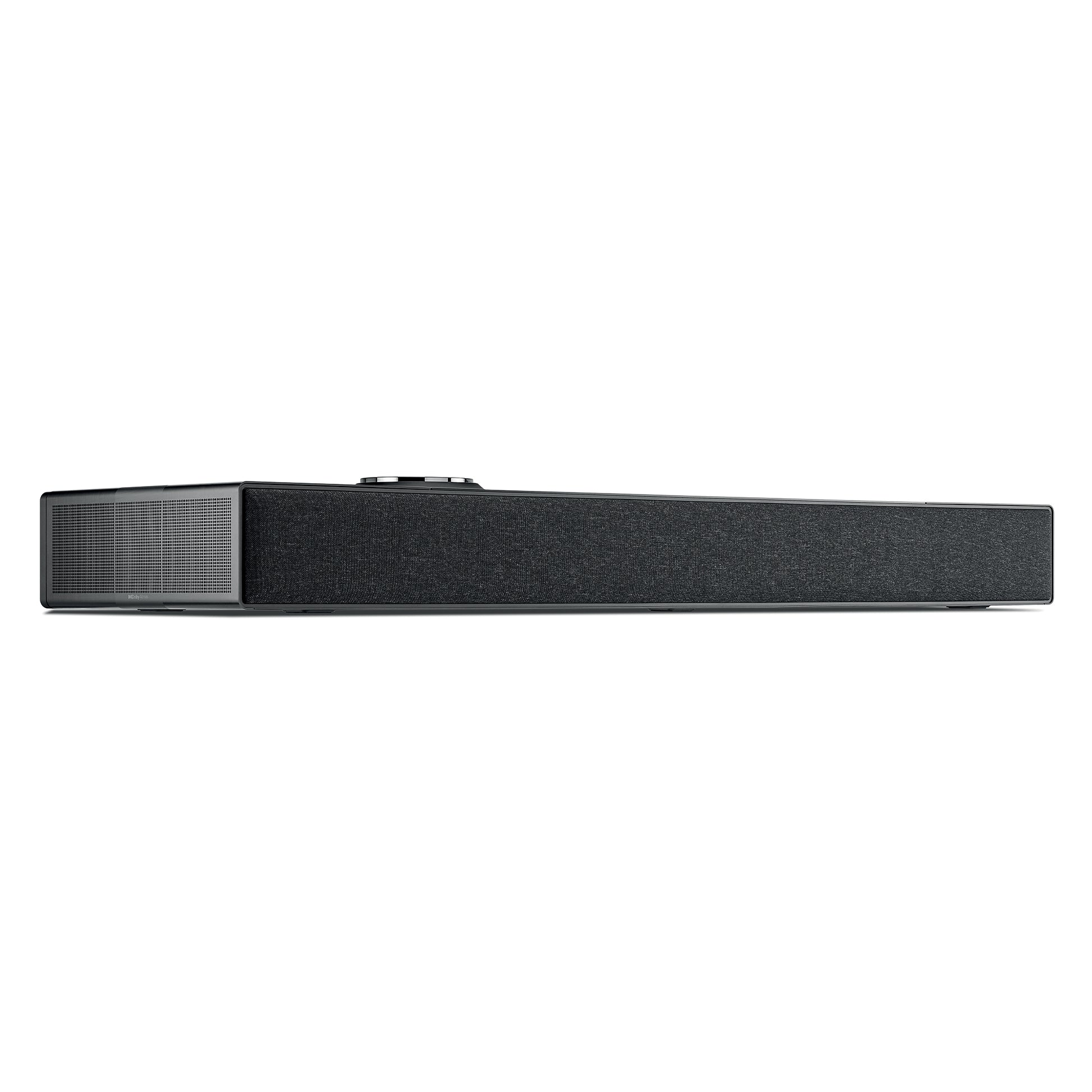

• Black fabric grille
• Power cable
• Product reset pin

Specifications

Speaker Drivers: 15

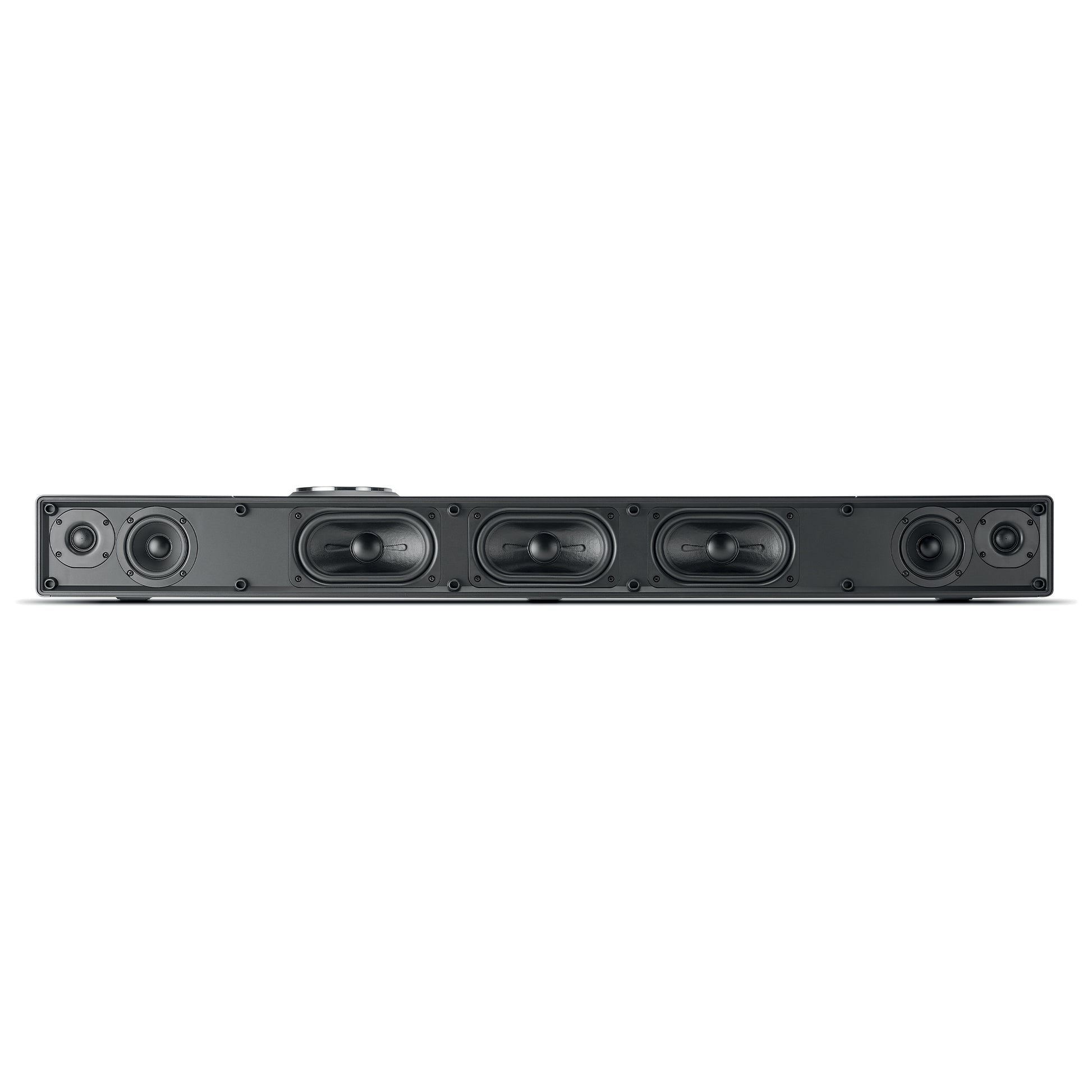

Front Drivers: Three 6" x 3" woofers, two 2.75" midrange drivers, two 1" tweeters

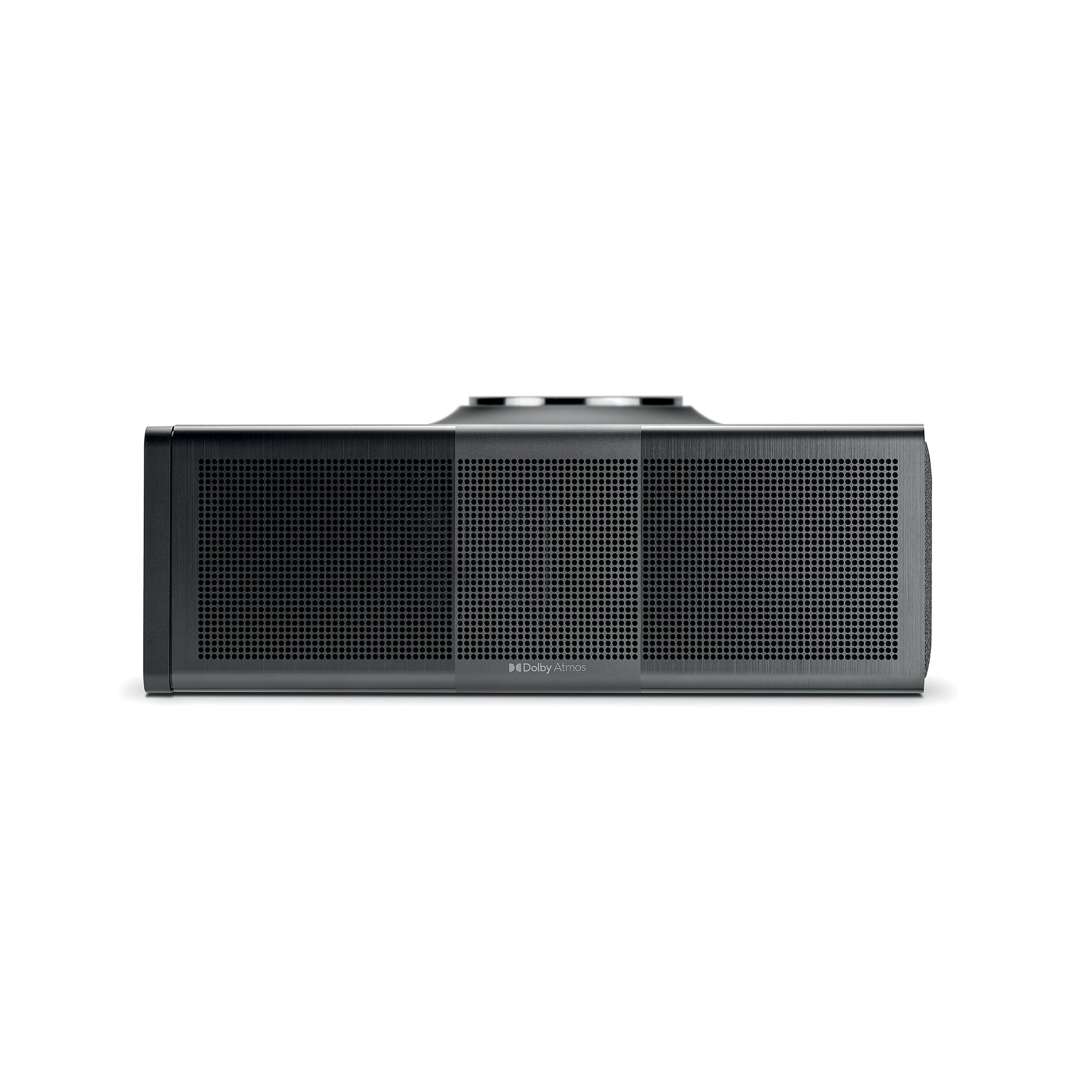

Side Drivers: Four 1.5" x 2.75" full-range drivers

Top Drivers: Four 1.5" x 2.75" full-range drivers

Frequency Response (±3 dB): 30 Hz–20 kHz

Low-Frequency Cutoff (–6 dB): 27 Hz

Maximum SPL (Peak at 1 m): 108 dB SPL

Amplifier Class: class-D

Total Amplification: 660 W

Woofer Amplification (4 Ohms, 1% THD): 3 x 60 W

Full-Range, Midrange, and Tweeter Amplification (6 Ohms, 1% THD): 12 x 40 W

Digital Inputs: One HDMI eARC with CEC; one optical TOSLINK, up to 24-bit/96 kHz

Analog Output: One stereo RCA pair for a powered subwoofer

Network: Gigabit Ethernet; Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth: Bluetooth 5.1 with SBC and AAC

Stereo Streaming: Apple AirPlay 2, Bluetooth, Google Cast, internet radio, Qobuz, Qobuz Connect, Spotify Connect, TIDAL, TIDAL Connect, and UPnP

Supported Audio Formats: WAV, FLAC, AIFF, ALAC, MP3, AAC, OGG, OPUS, DSD64, and DSD128

Maximum WAV Resolution: 32-bit/384 kHz

Maximum FLAC, AIFF, and ALAC Resolution: 24-bit/384 kHz

Multichannel Formats: Dolby Digital AC3, Dolby Digital AC4, Dolby Digital Plus, Dolby TrueHD, Dolby MAT, multichannel FLAC, multichannel WAV, and Apple APAC

Multiroom: Synchronization of up to 32 Focal and Naim streaming products

Control: Focal & Naim app; touch interface and rotary volume control with proximity sensor

Supported Mobile Operating Systems: iOS and Android

Normal Power Consumption: 200 W

Network Standby Power Consumption: Less than 2 W

Standby Power Consumption: Less than 0.5 W

Finish: Brushed, anodized, and sandblasted black aluminum

Dimensions (HWD): 4.65" x 39.37" x 11.61" (118 x 1,000 x 295 mm)

Weight: 34.2 lb. (15.5 kg)
