Monitor Audio Silver AMS 8G Dolby Atmos Enabled Speaker

Add Precise Overhead Effects to a Silver Series 8G Home Cinema System Without Installing Ceiling Speakers

The Monitor Audio Silver AMS 8G is a compact Dolby Atmos enabled speaker designed to add the height dimension to a Silver Series 8G home cinema system. It uses a 5.25" C-CAM RST III mid-bass driver and 25 mm C-CAM Gold Dome tweeter to reproduce the overhead effects encoded into Dolby Atmos soundtracks.

The Silver AMS 8G is designed to sit directly atop the Silver 50 8G or Silver 300 8G, using the ceiling to reflect sound toward the listening position. This provides a practical way to create convincing height information without installing dedicated speakers in the ceiling.

Silver Series Driver Technology

The 5.25" C-CAM mid-bass driver uses Monitor Audio's RST III cone geometry, while the 25 mm C-CAM Gold Dome tweeter incorporates an optimized waveguide. A refined crossover integrates the two drivers, and Through-Bolt Technology braces the driver and cabinet structure to help reduce unwanted resonance.

Compact, Sealed Design

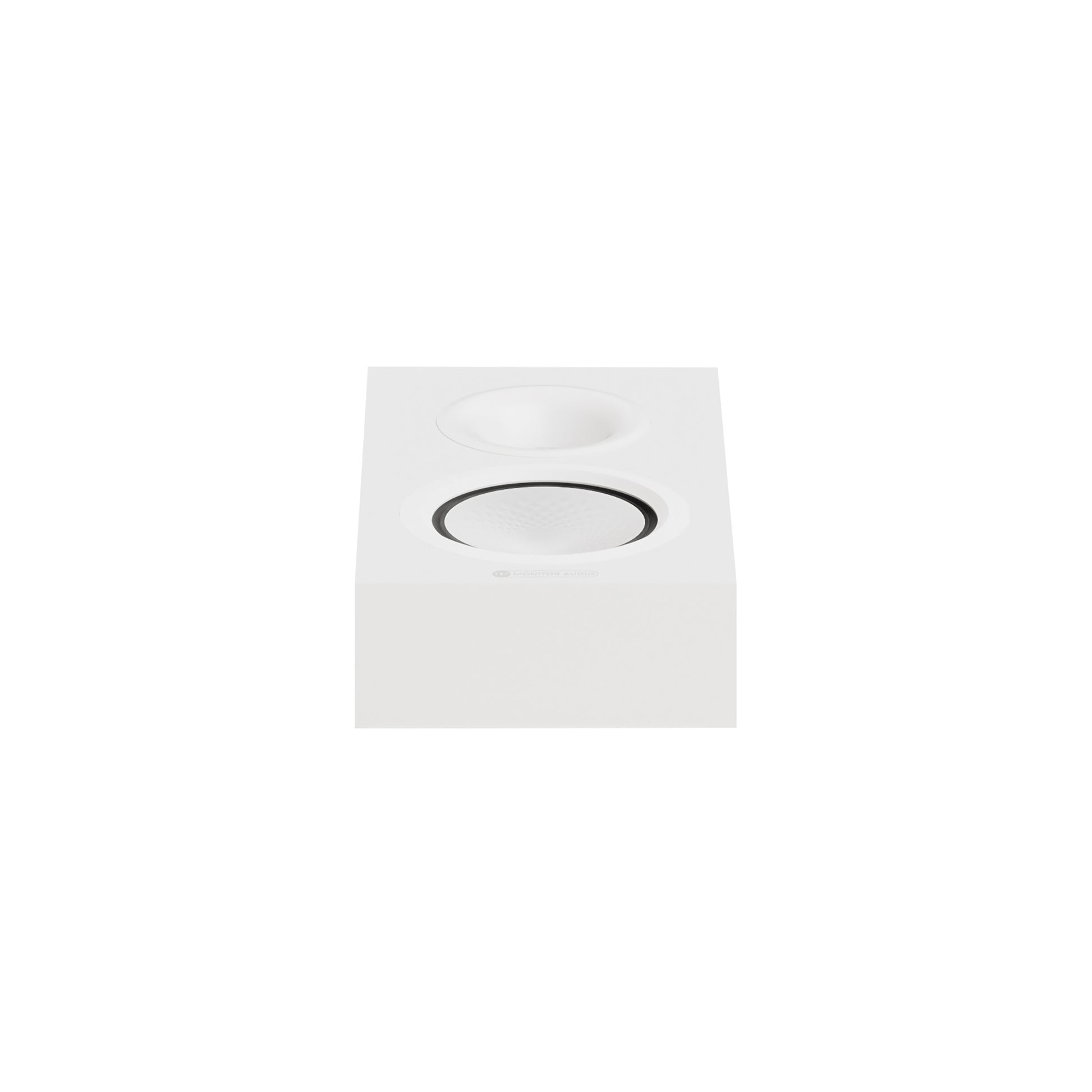

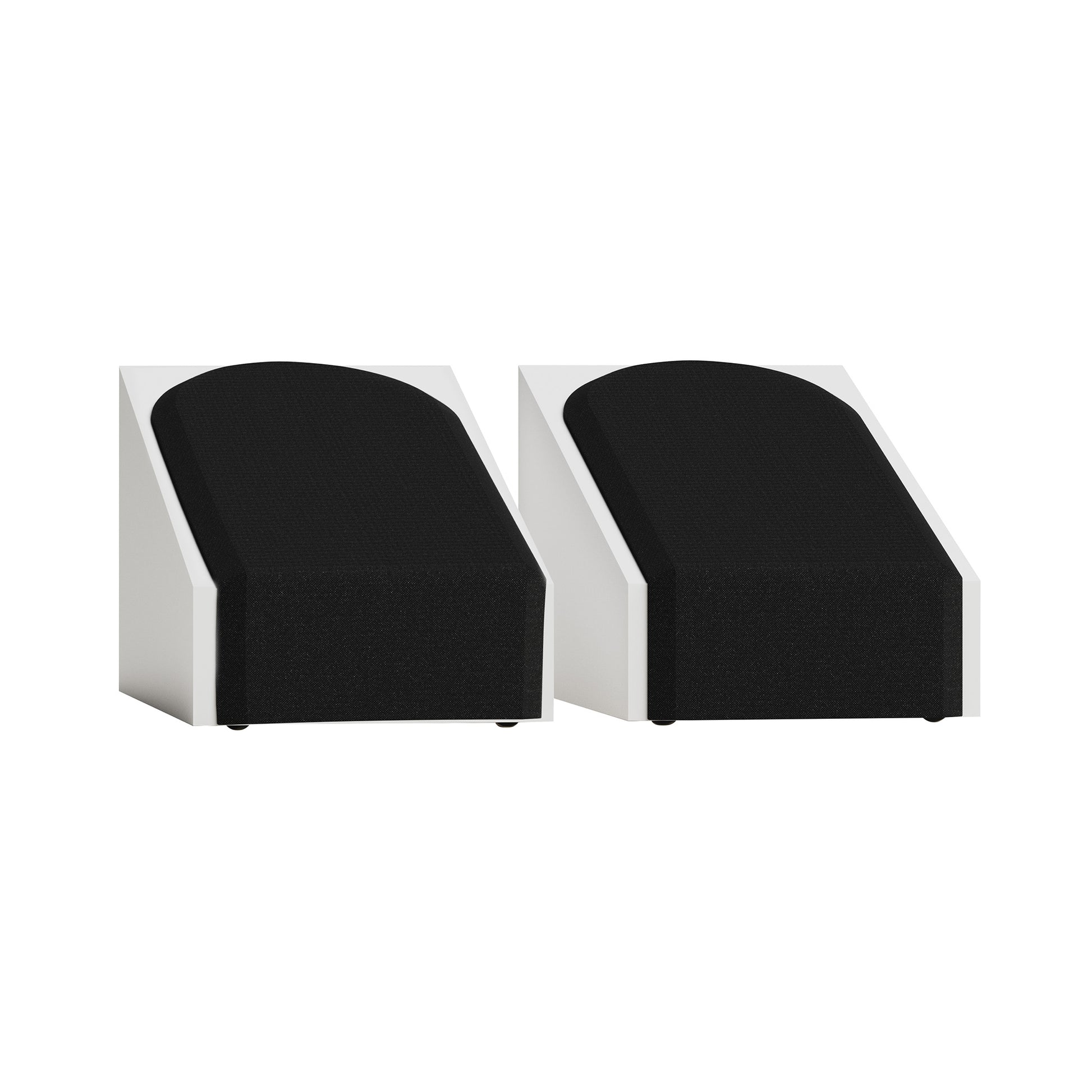

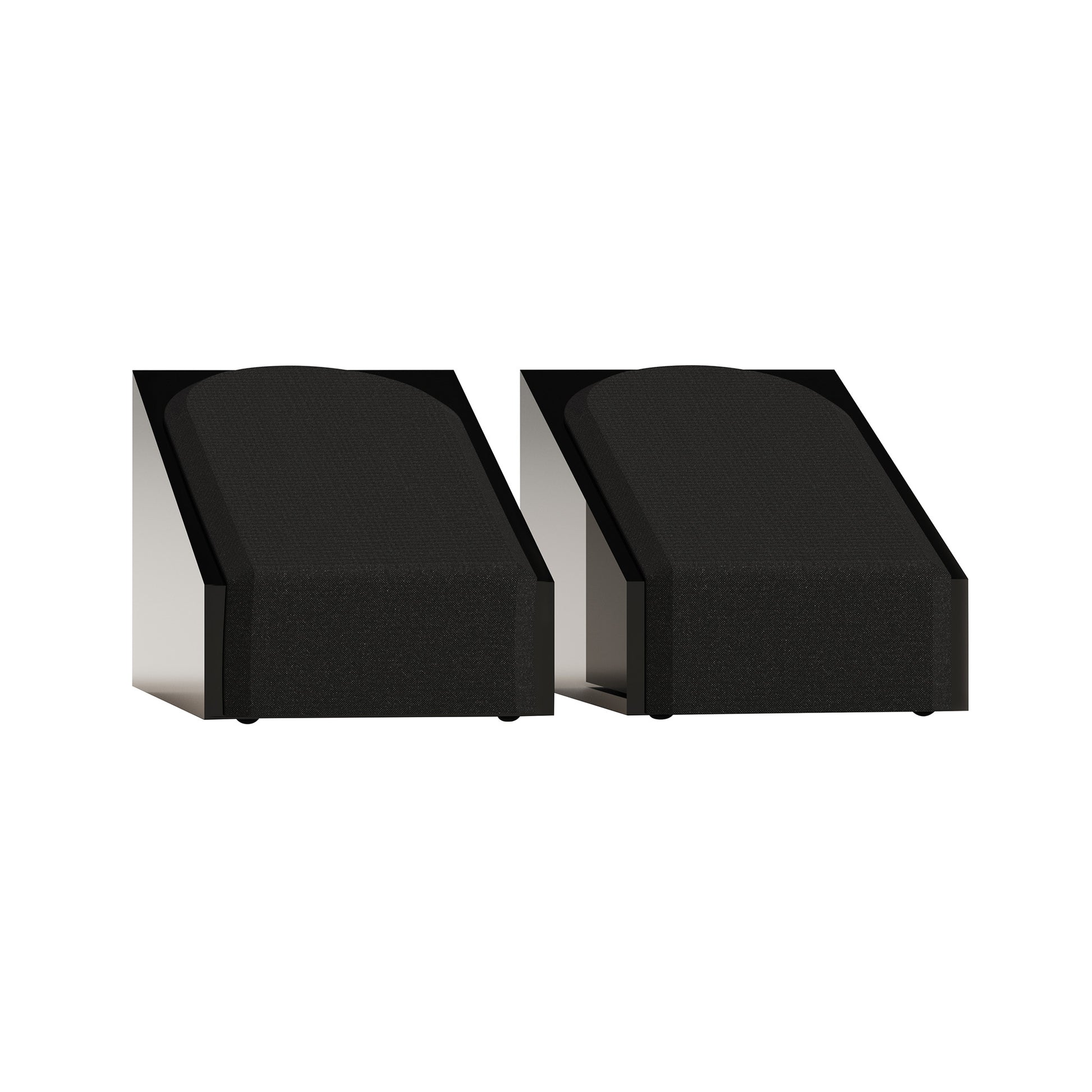

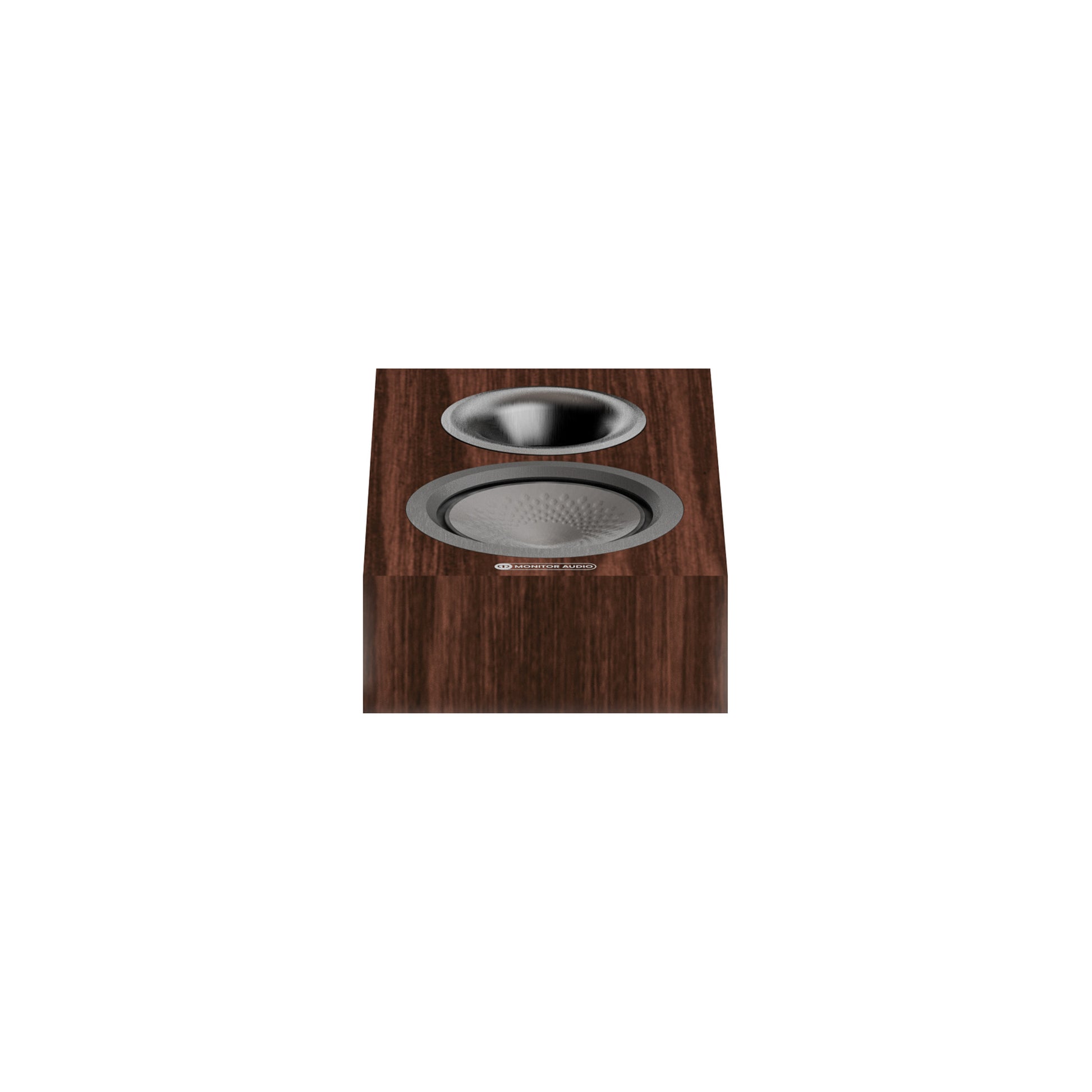

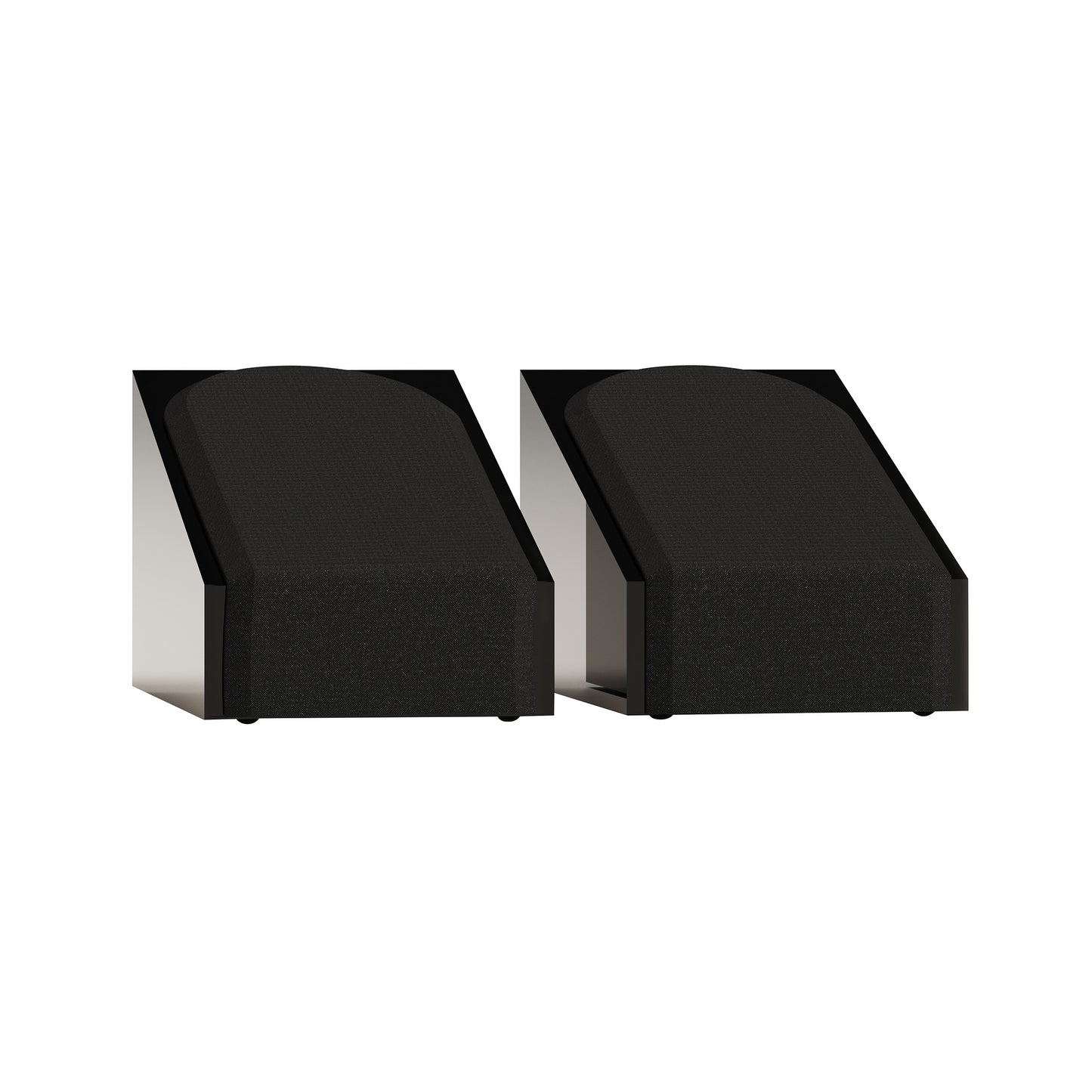

The Silver AMS 8G uses a sealed enclosure and measures just over 7" across, allowing it to integrate neatly with compatible Silver Series 8G speakers. Magnetic grilles are supplied, and the cabinet is available in High Gloss Black, European Walnut, and Satin White to coordinate with the rest of the range.

Features

• Dolby Atmos enabled two-way speaker for immersive height effects
• Designed to sit atop the Silver 50 8G or Silver 300 8G
• 5.25" C-CAM RST III mid-bass driver
• 25 mm C-CAM Gold Dome tweeter with optimized waveguide
• Refined crossover design
• Through-Bolt Technology for additional driver and cabinet bracing
• Sealed enclosure

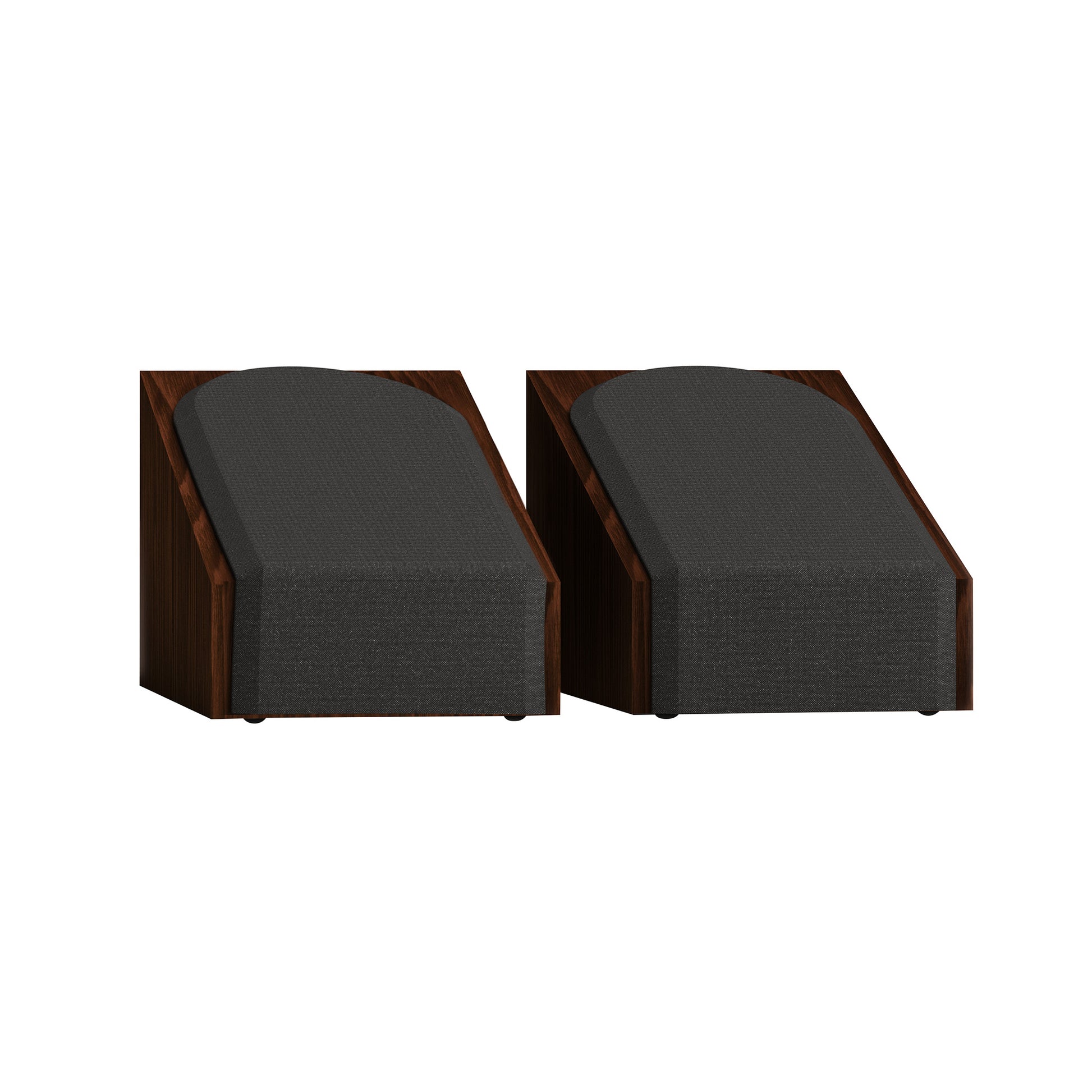

• Magnetic grilles

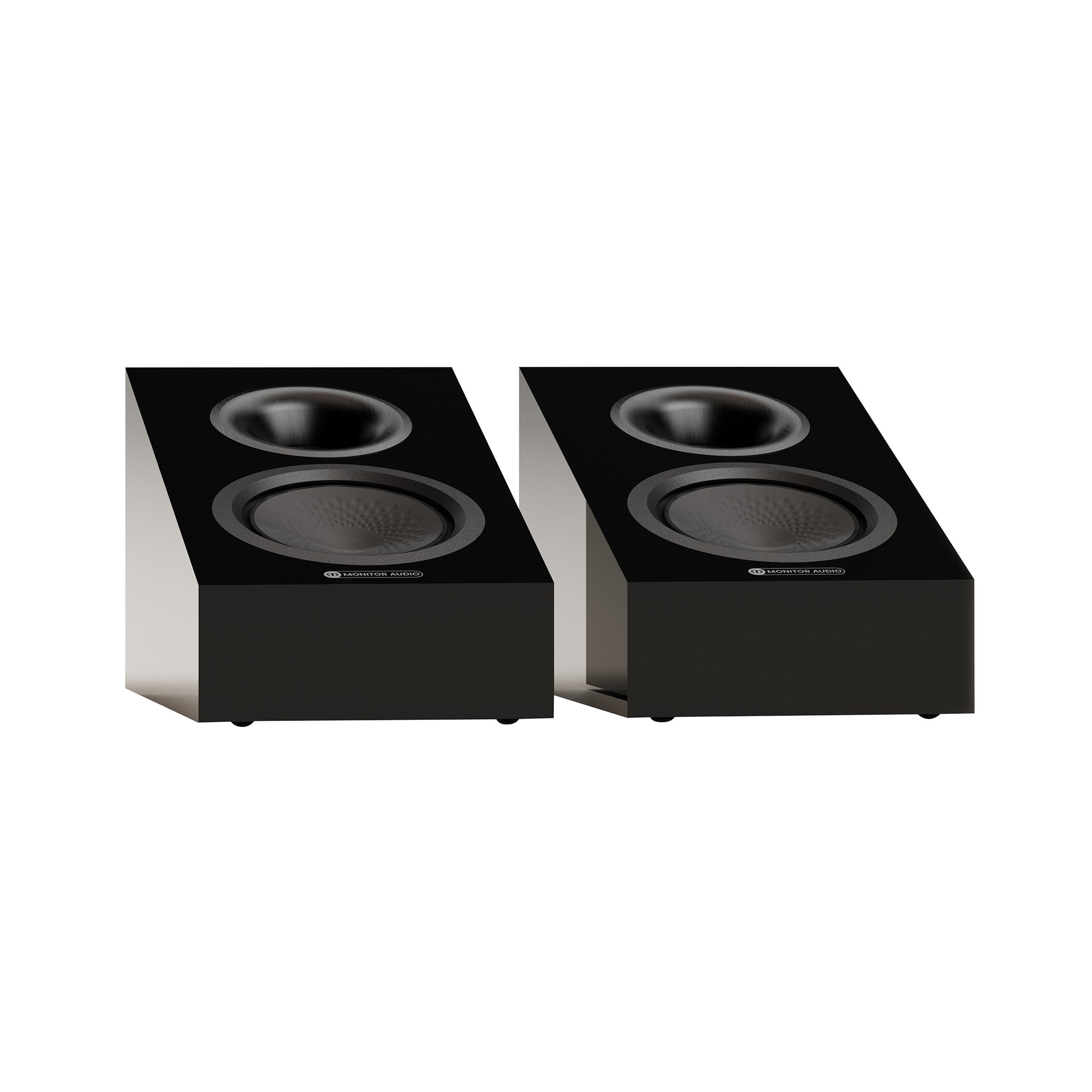

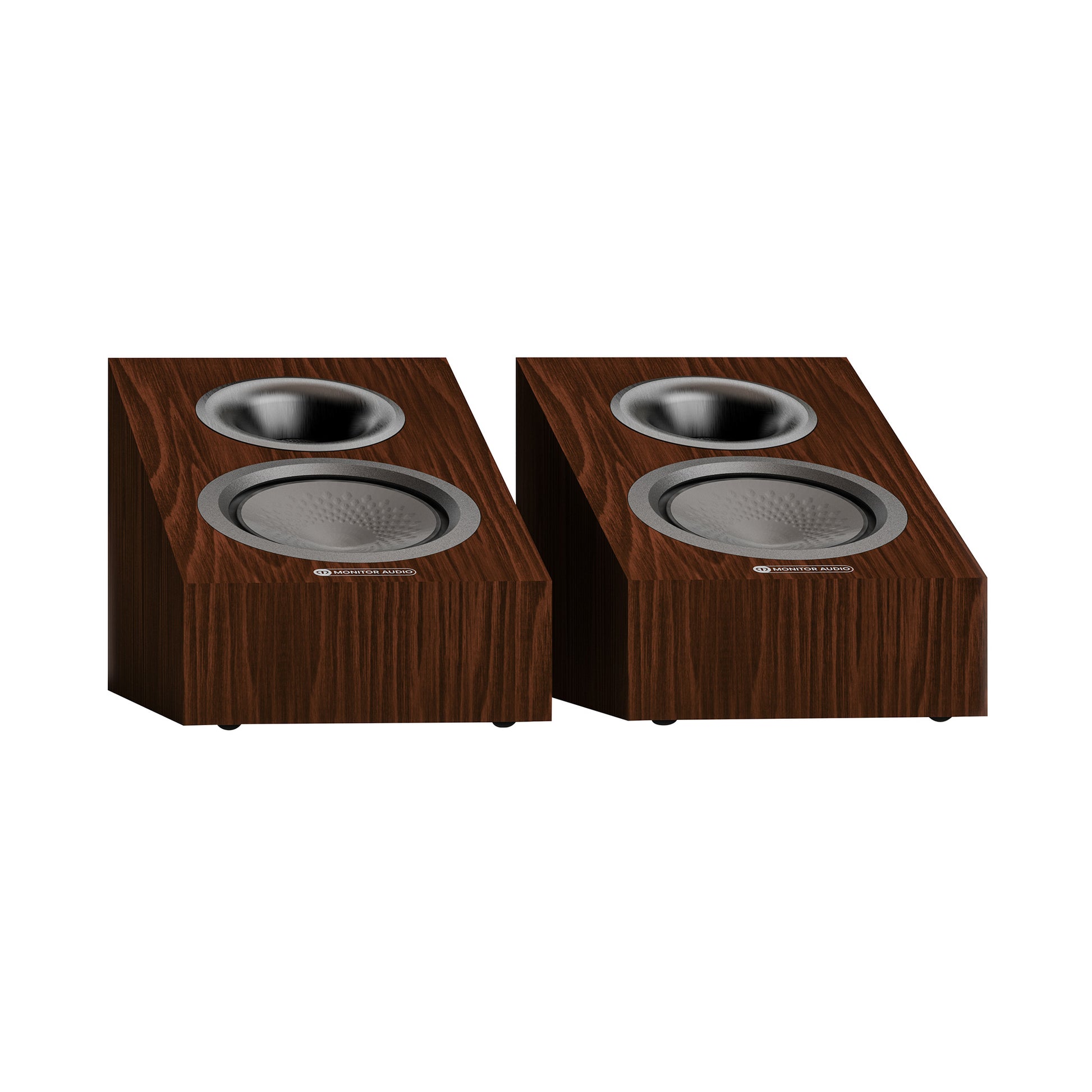

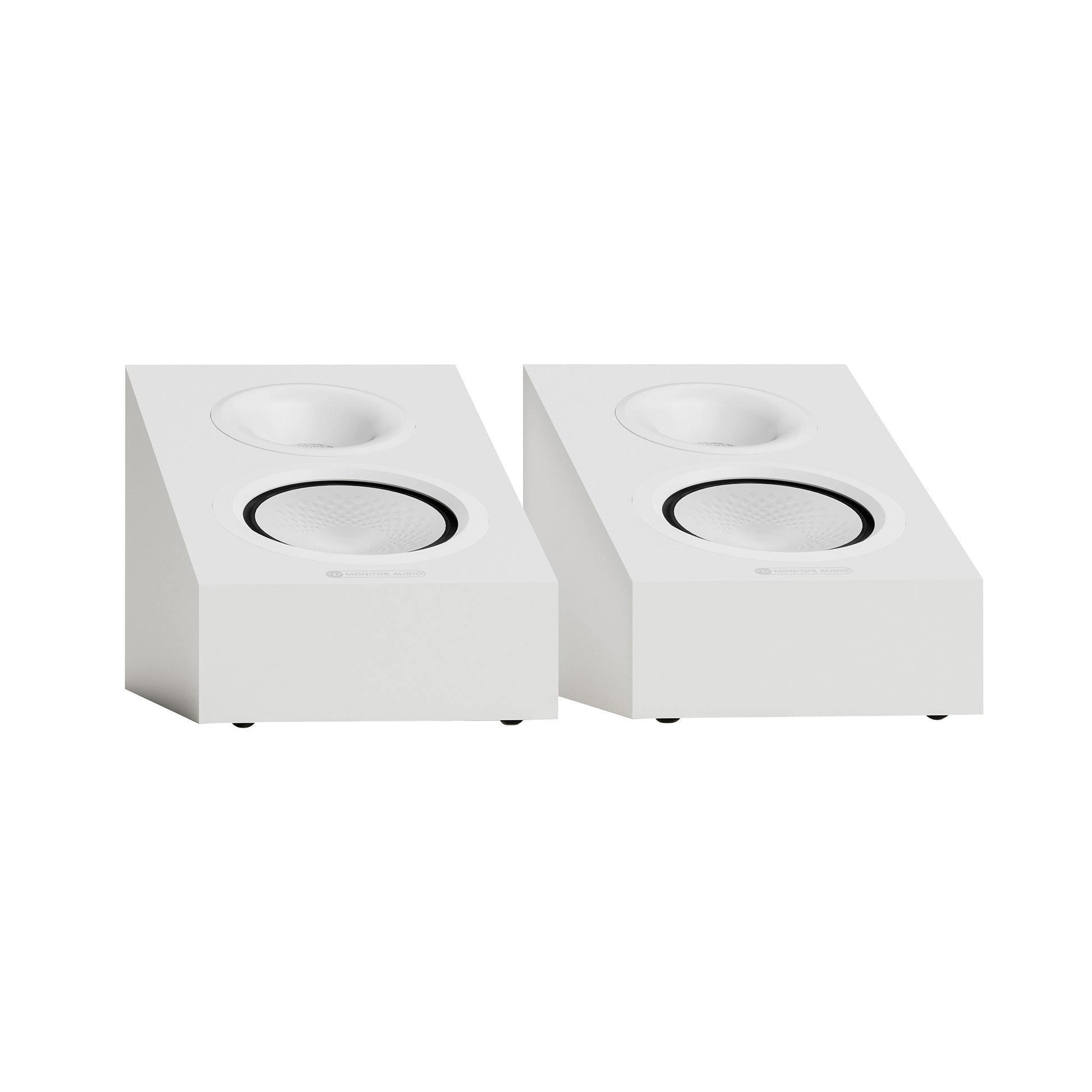

• Available in High Gloss Black, European Walnut, and Satin White
• Sold as a pair

Included Accessories

• Magnetic grilles

Specifications

System Format: 2-way

Frequency Response, In-Room (-6 dB): 82 Hz–35 kHz

Sensitivity (2.83 Vrms @ 1 m, Free-Field): 85.5 dB

Nominal Impedance: 8 ohms

Minimum Impedance (20 Hz–20 kHz): 3.5 ohms @ 6.8 kHz

Maximum Peak SPL (AES75, Z-Weighted): 111 dB

Continuous Power Handling (CTA 426-B): 60 W

Recommended Amplifier Power (RMS, Music Signal, 4 Ohms): 30–120 W

Recommended Amplifier Power (RMS, Music Signal, 8 Ohms): 15–60 W

Bass Alignment: Sealed

Crossover Frequency: LF/HF: 2.8 kHz

Drive Unit Complement: 1 x 5.25" C-CAM RST III mid-bass driver; 1 x 25 mm C-CAM Gold Dome tweeter with optimized waveguide

Finishes: High Gloss Black, European Walnut, Satin White

Dimensions With All Accessories Fitted (H × W × D): 7 5/16" x 7 5/16" x 12 5/16" (185 x 185 x 312 mm)

Sold As: Pair

Warranty: 5 years

Weight (Each): 9.9 lb. (4.5 kg)
