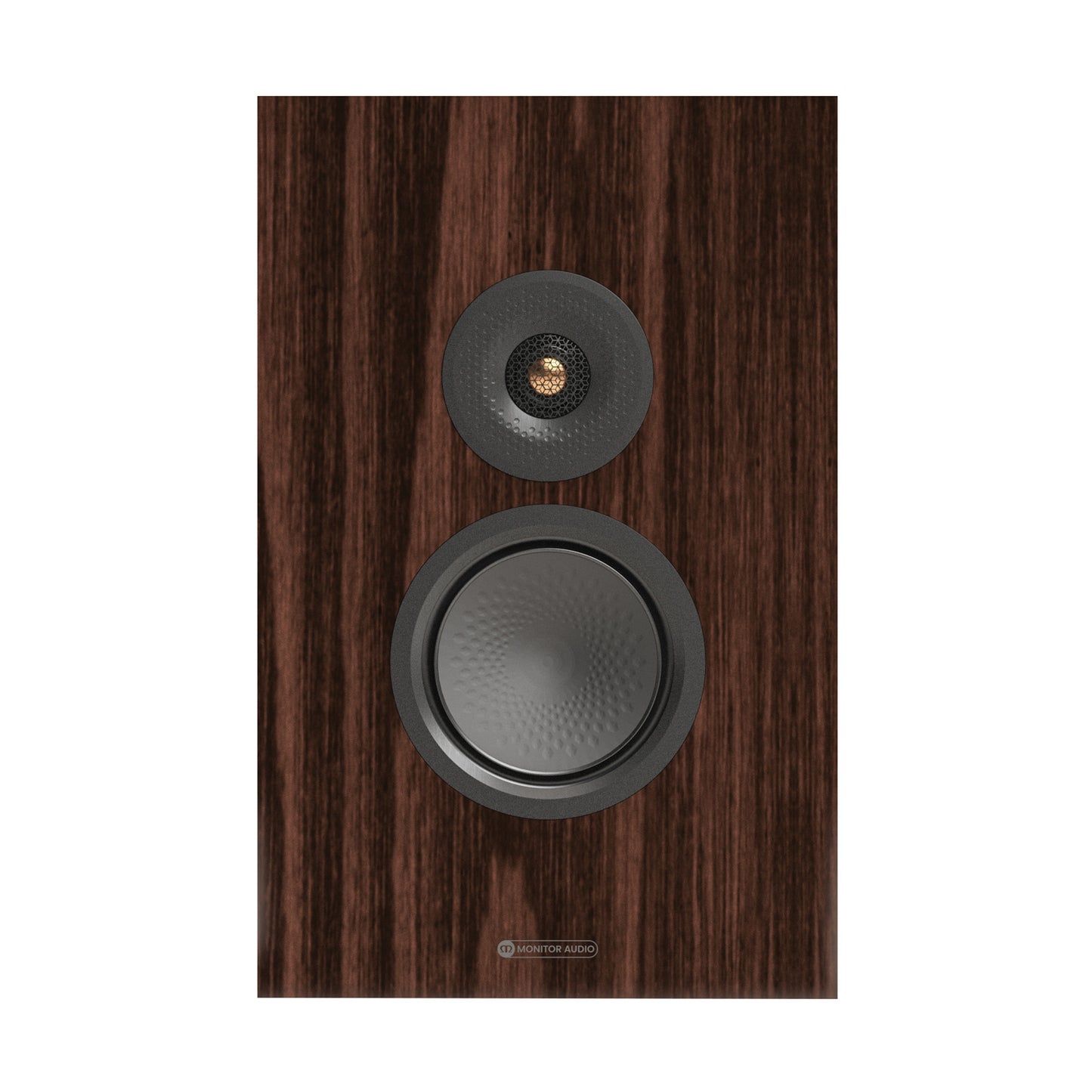

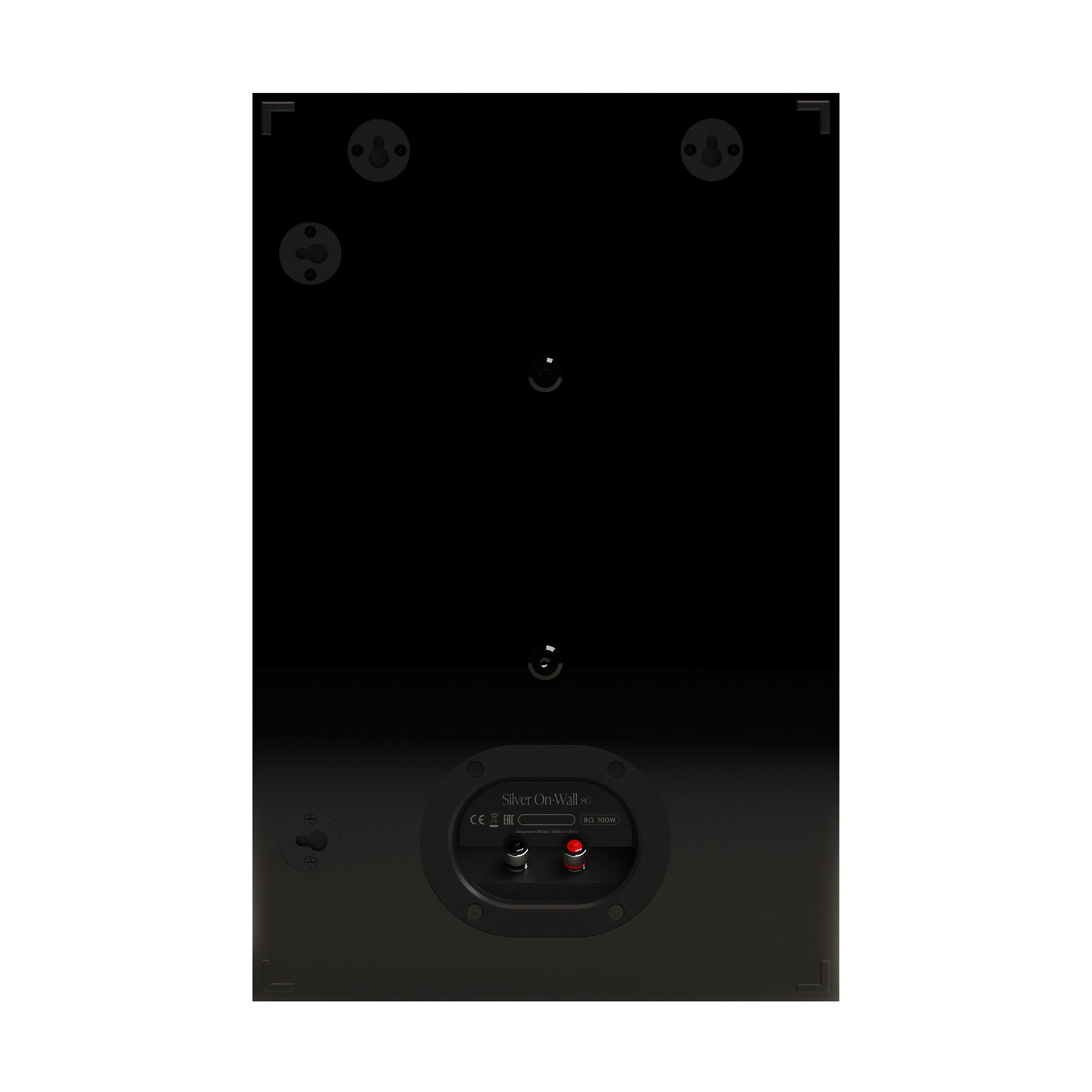

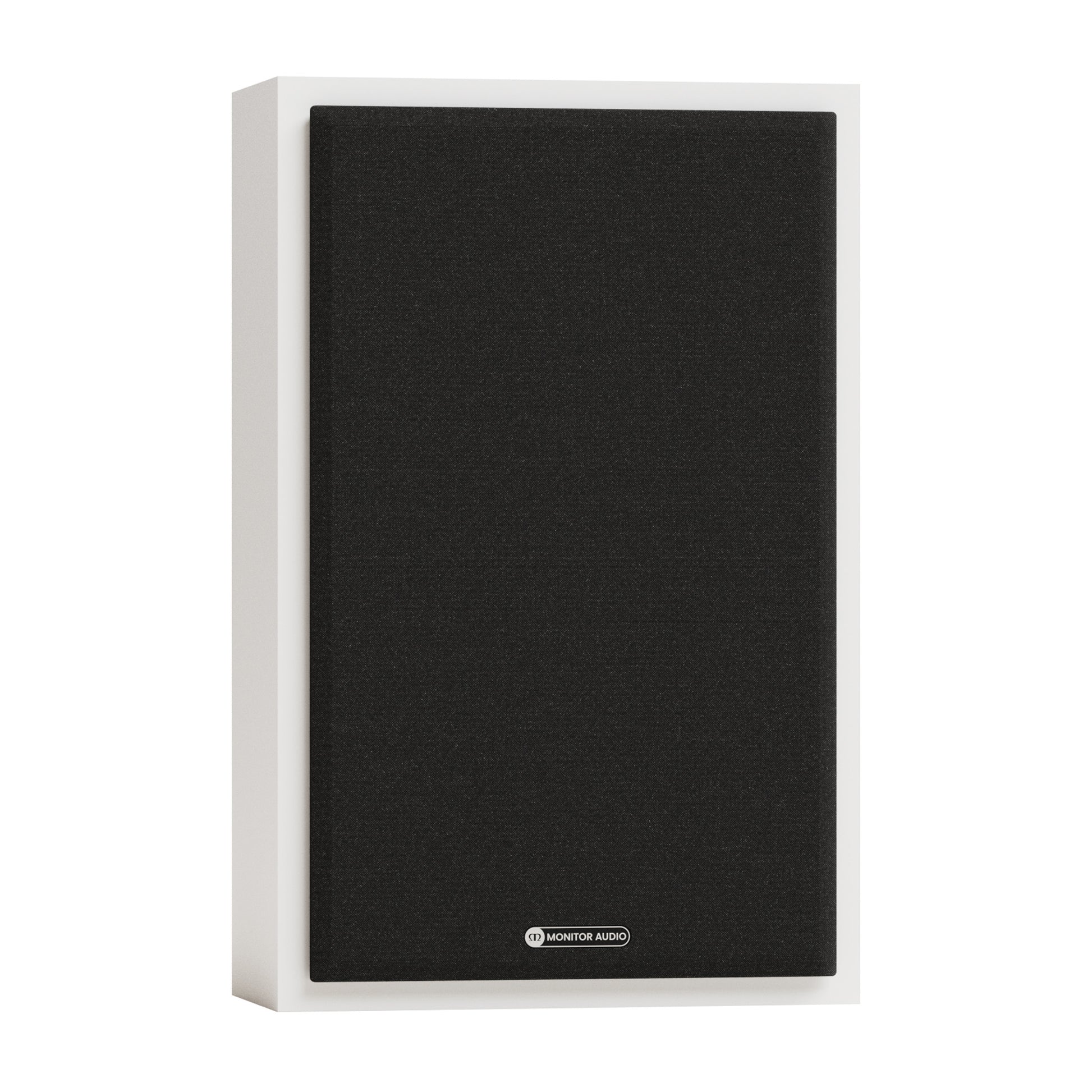

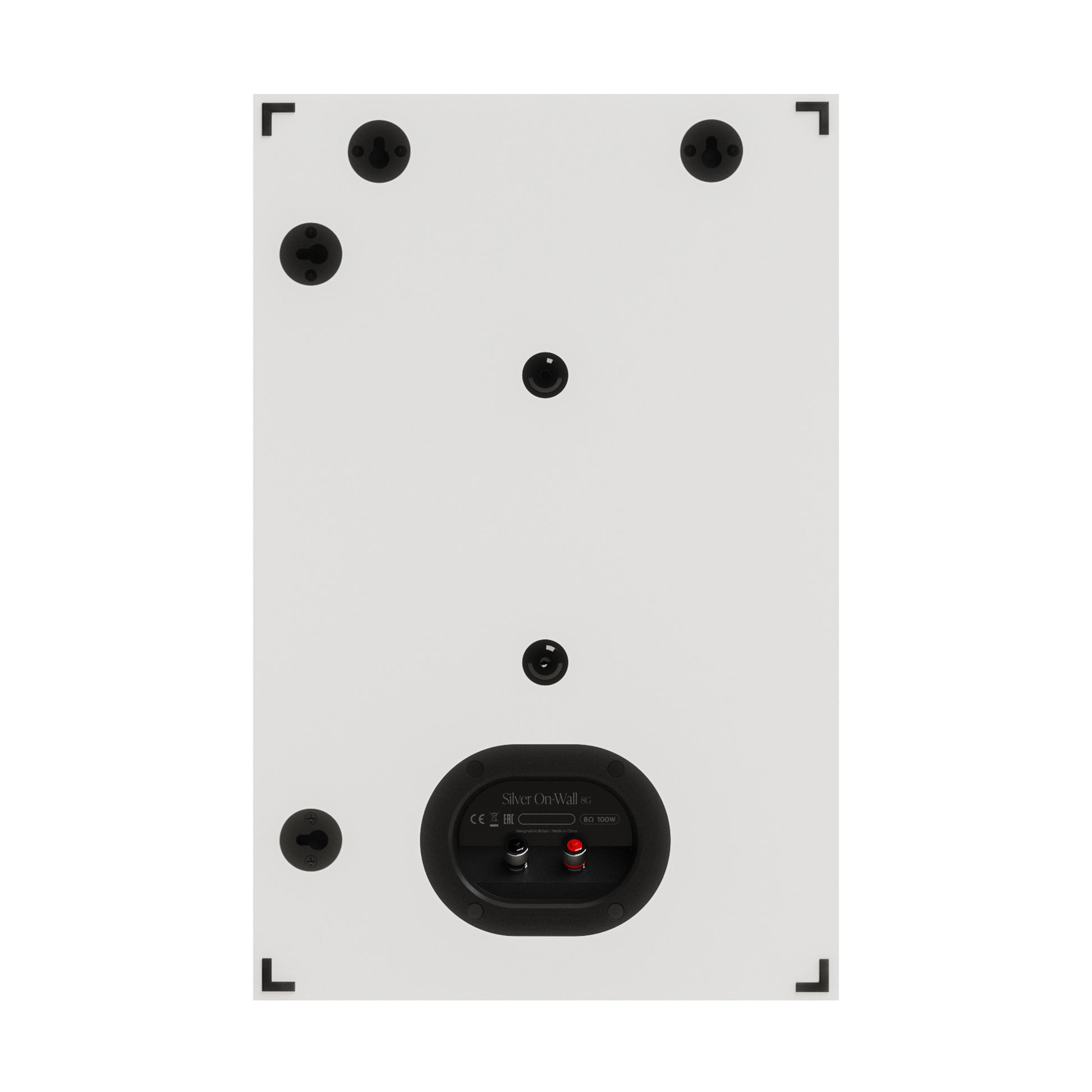

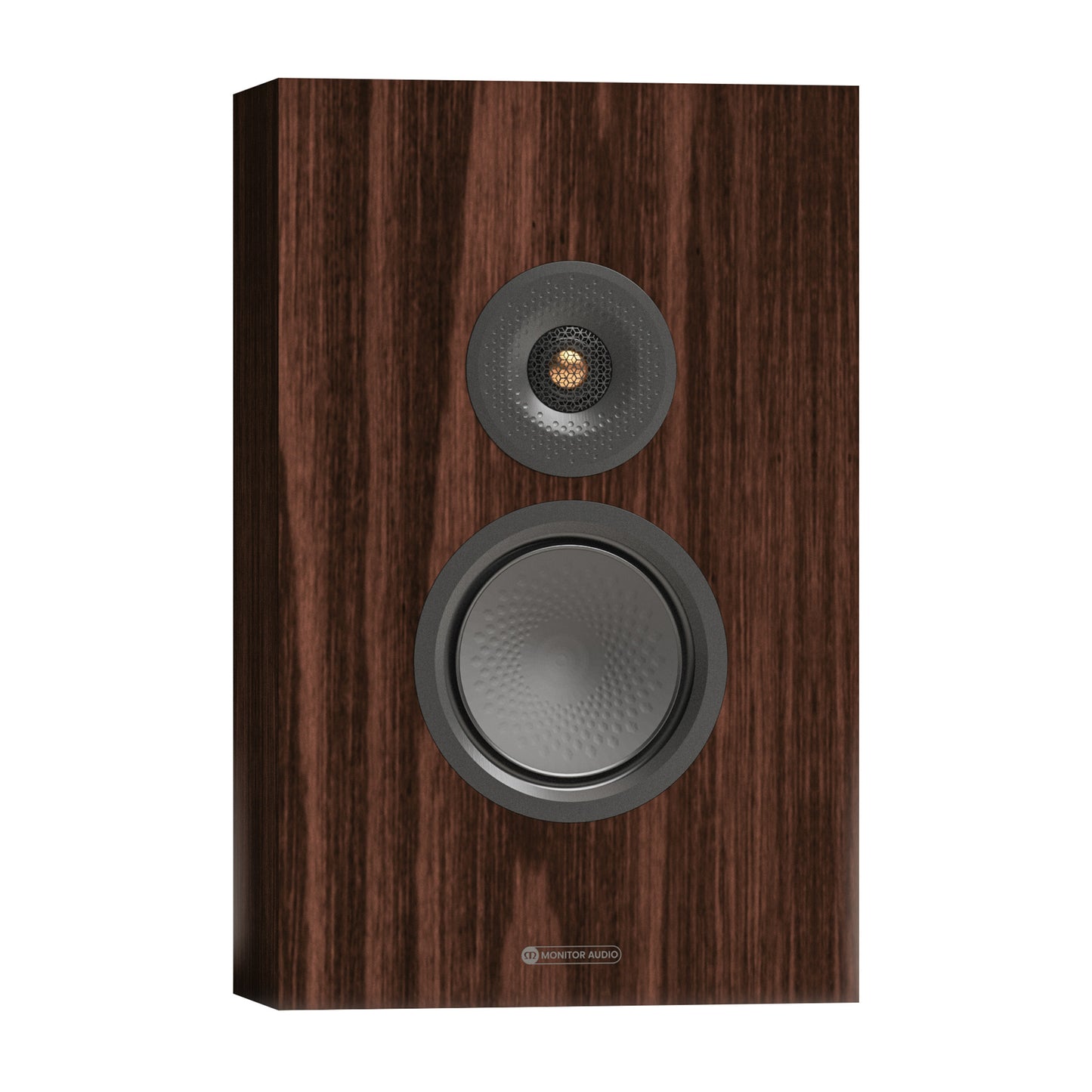

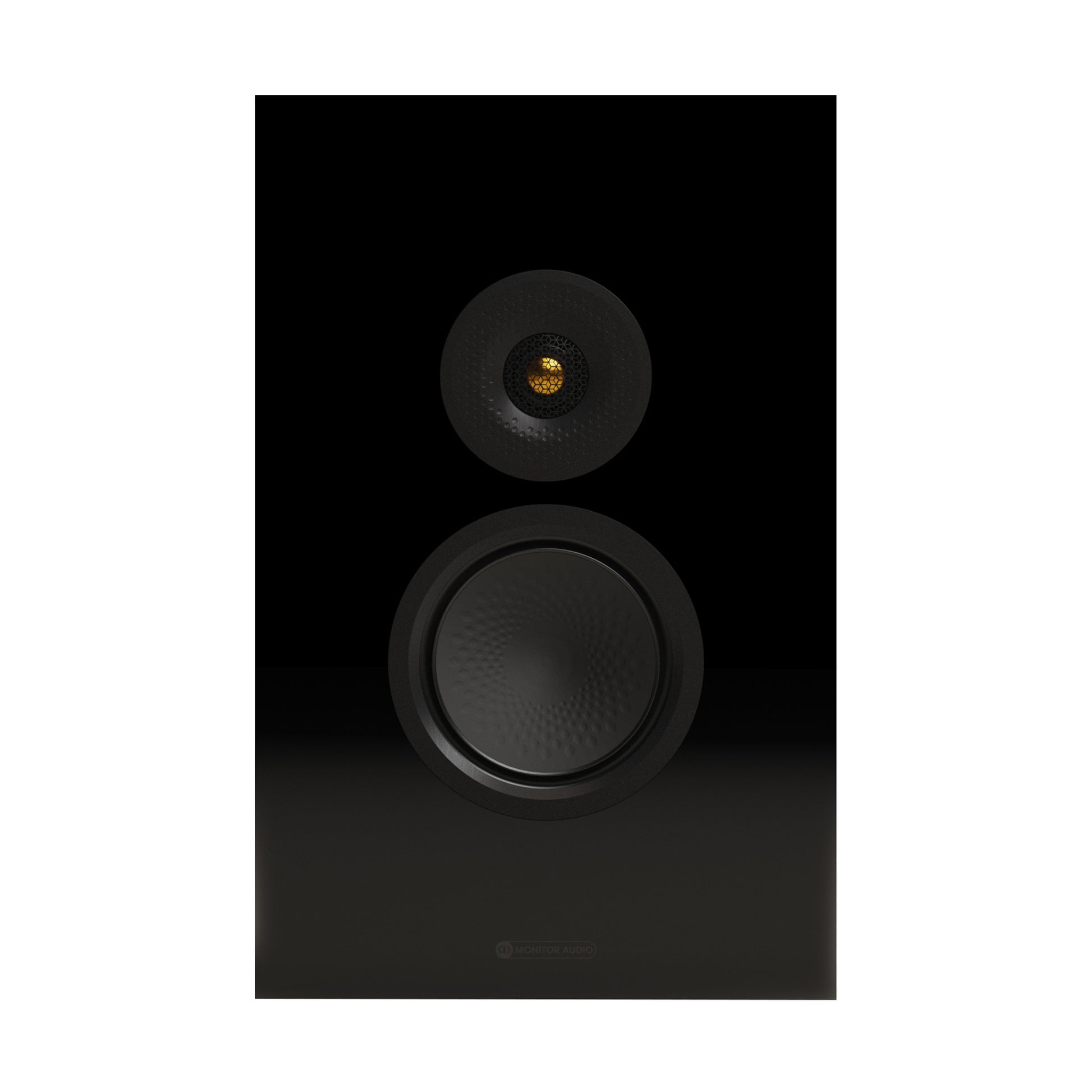

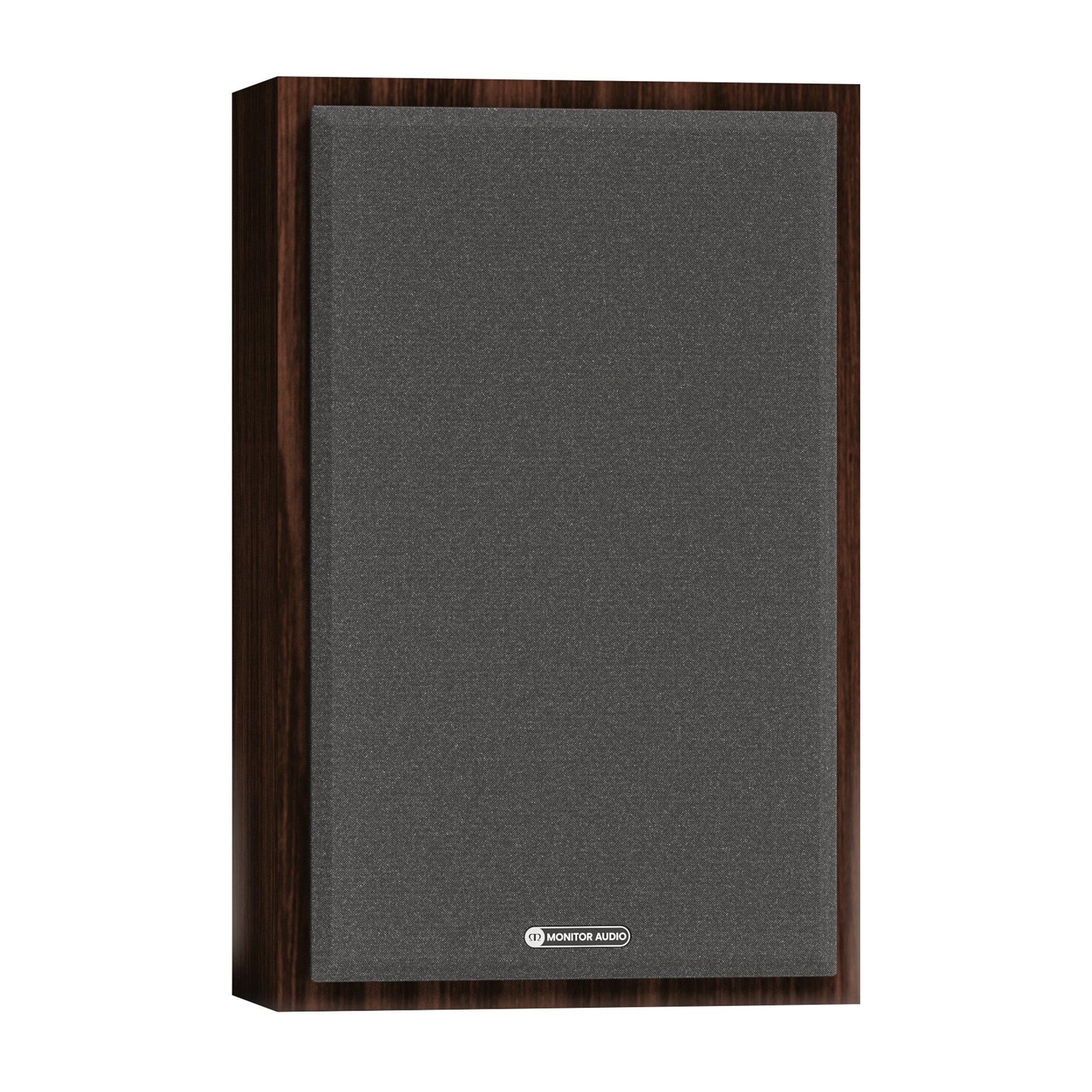

Monitor Audio Silver On-Wall 8G On-Wall Speaker

A Slim, Flexible 2-Way Design for Stereo, LCR, and Surround Applications

The Monitor Audio Silver On-Wall 8G brings the engineering of the Silver Series 8G to a slim cabinet designed specifically for wall-mounted systems. It combines a 6" C-CAM RST III mid-bass driver with a 25 mm C-CAM Gold Dome tweeter and can be mounted horizontally or vertically, giving it unusual flexibility for both music and home theater installations.

Used around a screen, the Silver On-Wall 8G can serve as a left, center, or right channel. It can also be used for side and rear effects channels in a multichannel system, while its 2-way configuration and full-range design make it equally suitable for wall-mounted stereo applications. Each speaker is sold individually.

C-CAM Drivers With RST III Geometry

The 6" mid-bass driver uses Monitor Audio's C-CAM cone material and RST III geometry, paired with the company's 25 mm C-CAM Gold Dome tweeter. A refined crossover integrates the two drivers at 2.9 kHz, with the speaker specified for an in-room frequency response of 44 Hz–35 kHz at -6 dB.

Engineered for a Slim Cabinet

Silent Flow Port Technology manages airflow from the compact enclosure, while Through-Bolt Technology braces the driver to help increase cabinet rigidity and minimize unwanted resonance. At just 5 5/16" deep with all accessories fitted, the cabinet keeps a low profile against the wall without requiring an in-wall installation.

Horizontal or Vertical Installation

The Silver On-Wall 8G can be installed in either horizontal or vertical orientation, allowing the same speaker to fill several roles within a system. Three finishes—High Gloss Black, European Walnut, and Satin White—provide options for integrating the speaker with a room, display, or other Silver Series 8G models.

Features

• 2-way on-wall loudspeaker for stereo and home theater systems
• 1 x 6" C-CAM RST III mid-bass driver
• 1 x 25 mm C-CAM Gold Dome tweeter

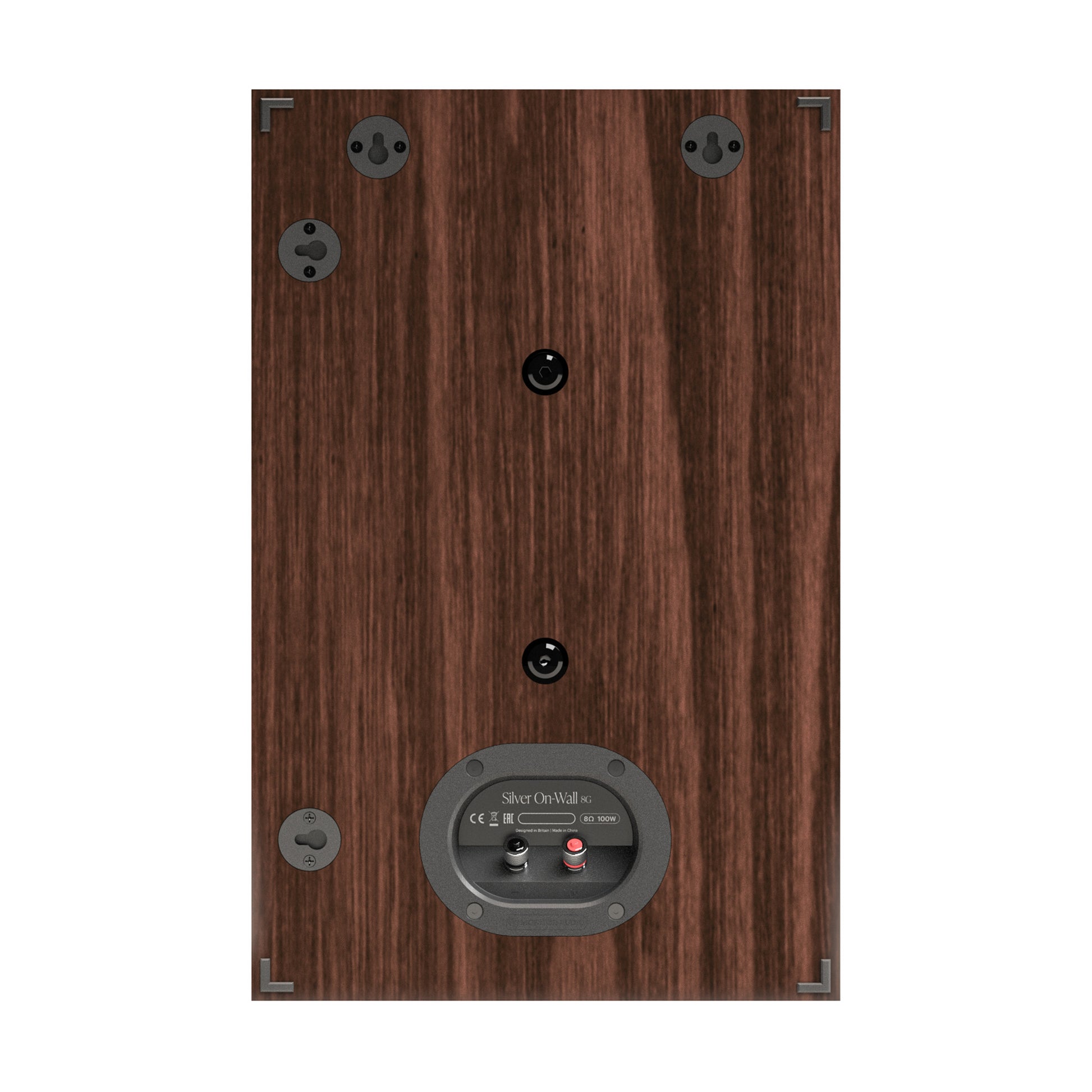

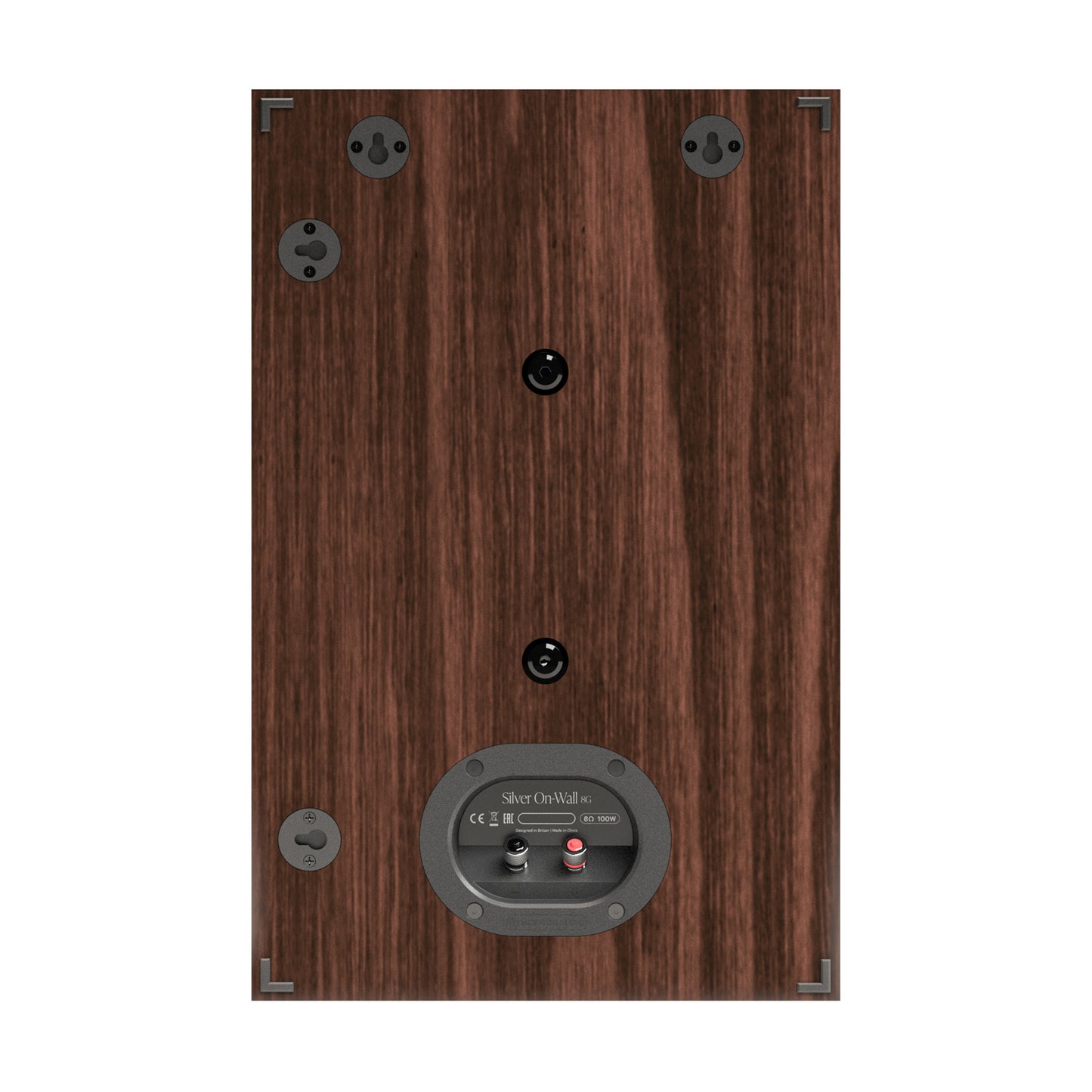

• Flexible horizontal or vertical wall mounting
• Suitable for left, center, right, side, and rear channel applications
• Refined crossover design
• Silent Flow Port Technology
• Through-Bolt Technology for increased cabinet rigidity

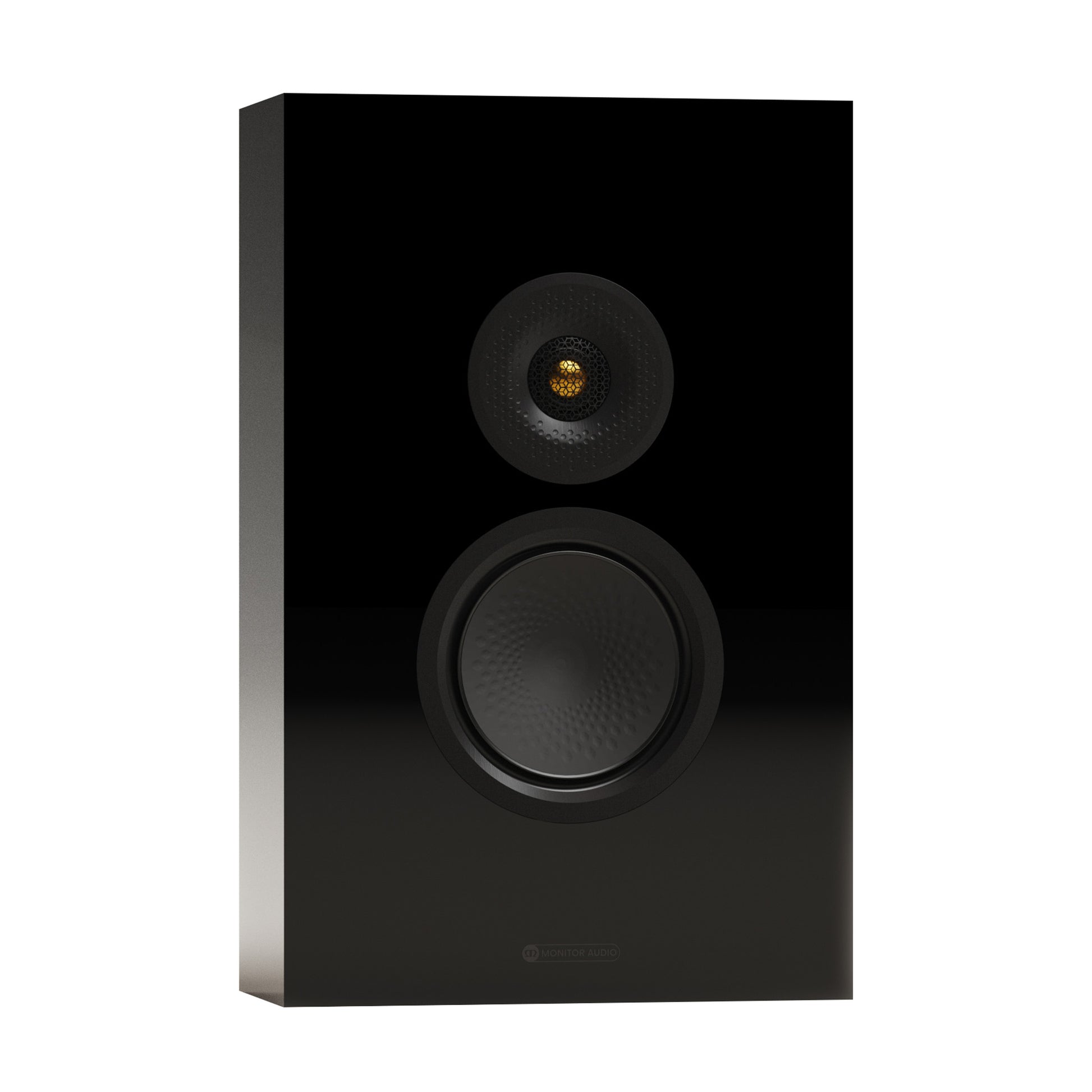

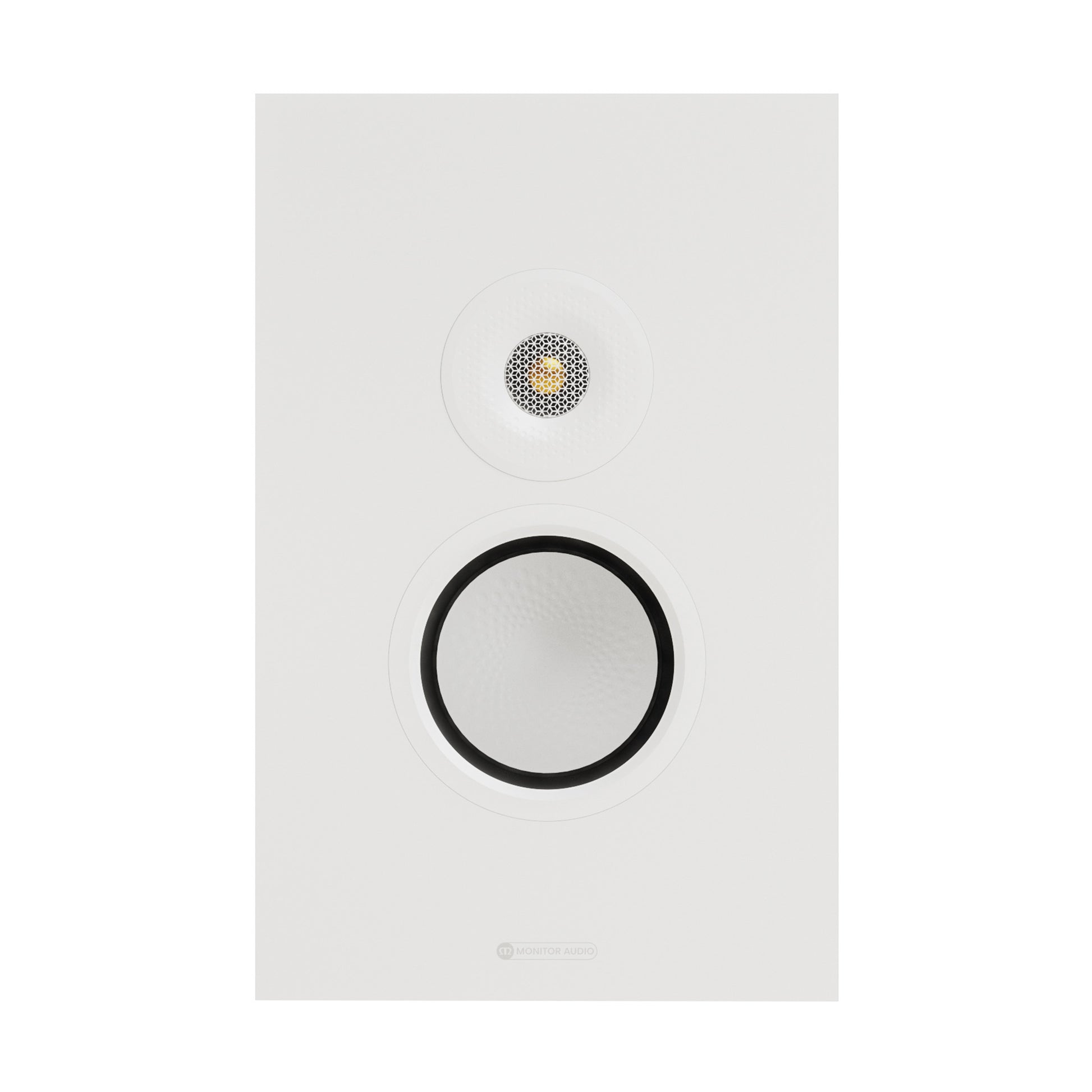

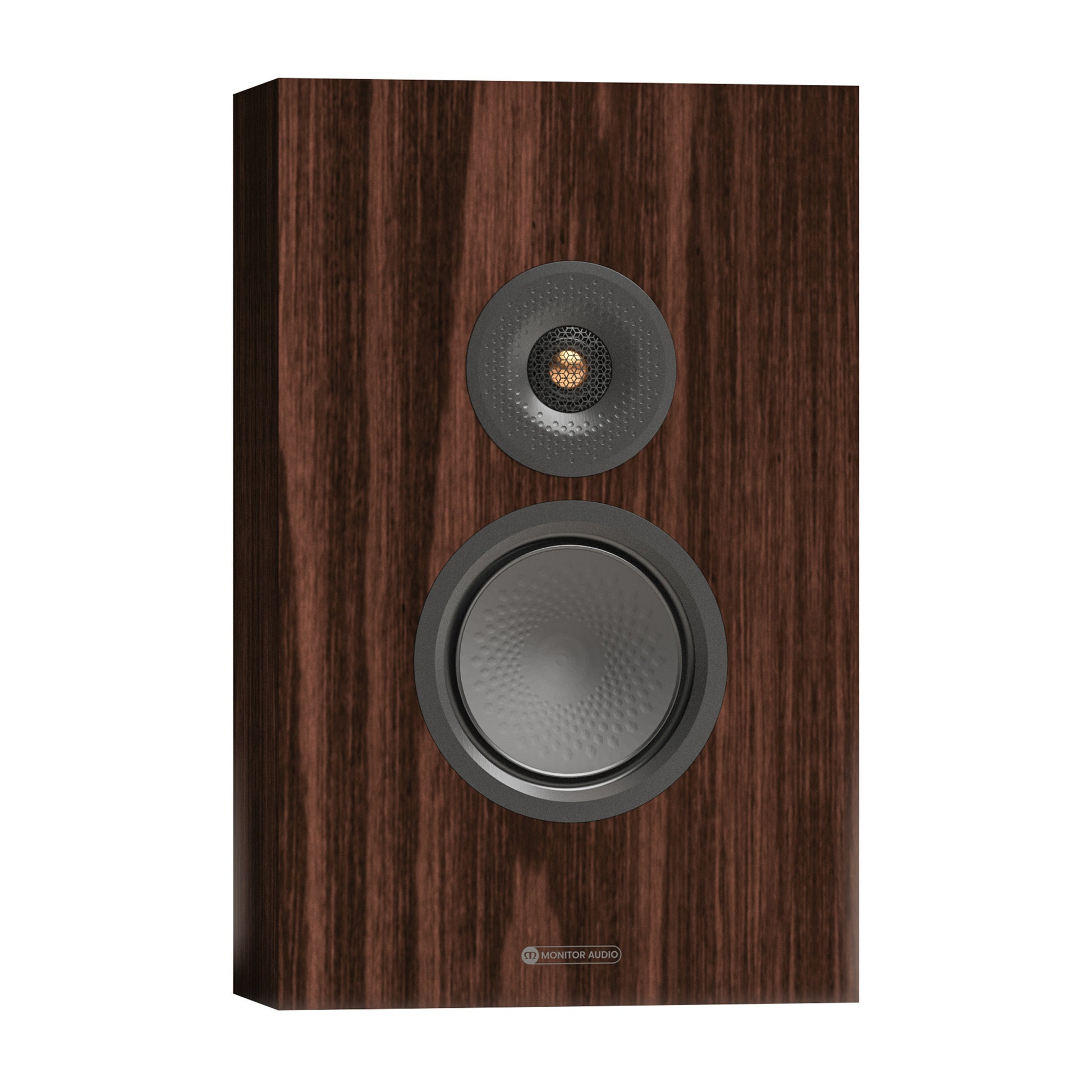

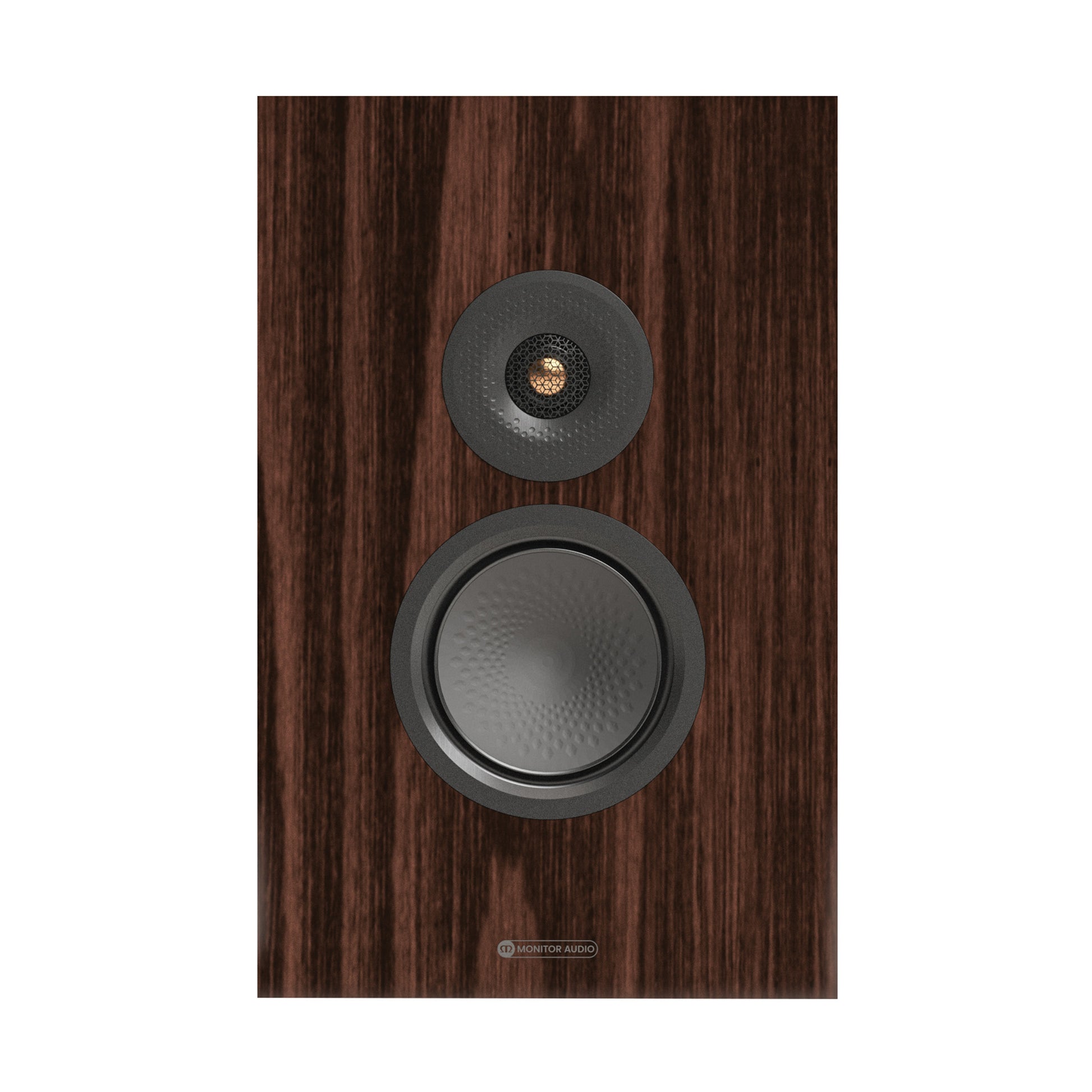

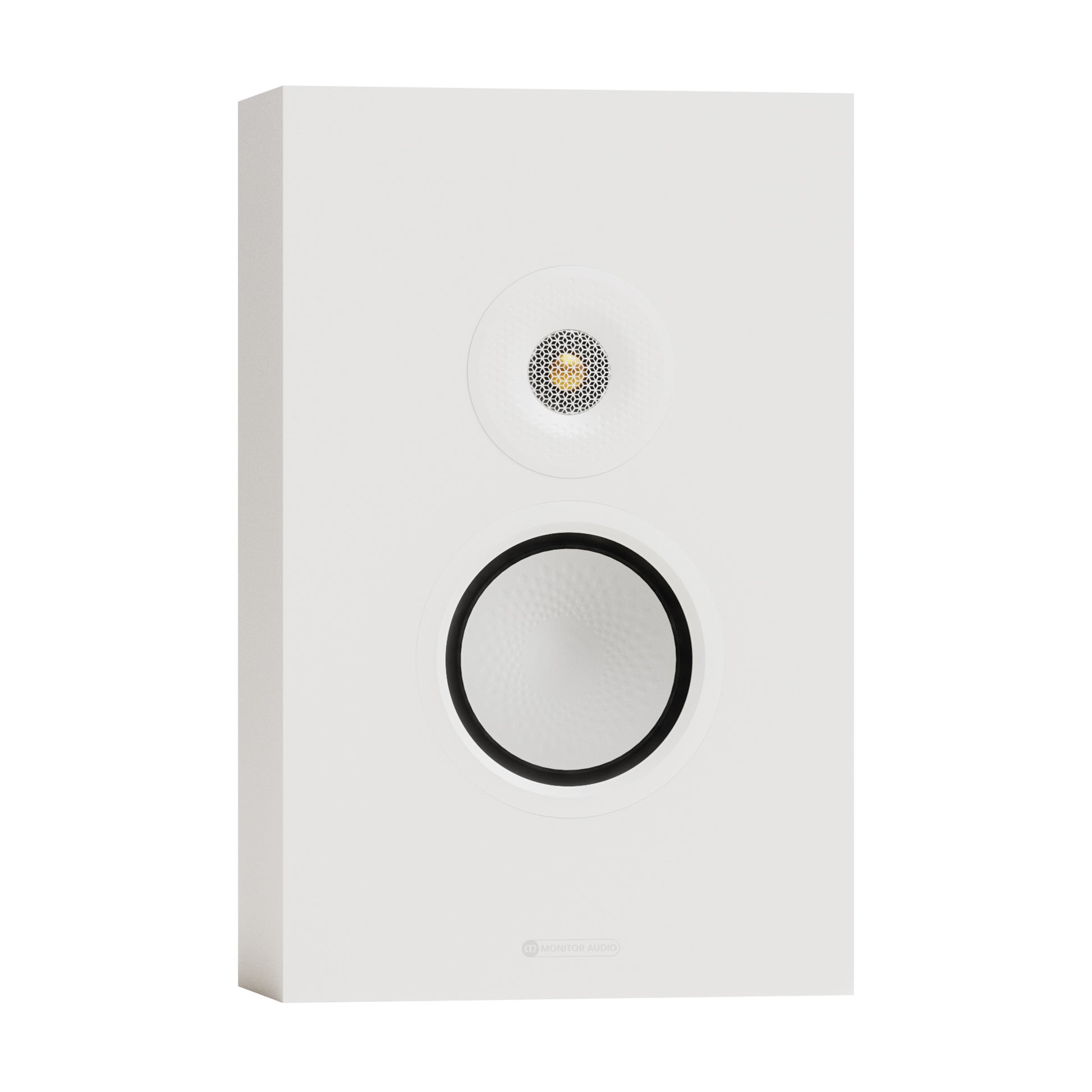

• Available in High Gloss Black, European Walnut, and Satin White
• Sold individually

Specifications

System Format: 2-way

Frequency Response, In-Room (-6 dB): 44 Hz–35 kHz

Sensitivity (2.83 Vrms at 1 m, Free-Field): 88 dB

Nominal Impedance: 8 ohms

Minimum Impedance (20 Hz–20 kHz): 5.5 ohms at 20 kHz

Maximum Peak SPL (AES75, Z-Weighted): 112 dB

Continuous Power Handling (CTA 426-B): 100 W

Recommended Amplifier Power (RMS, Music Signal, 4 Ohms): 50–200 W

Recommended Amplifier Power (RMS, Music Signal, 8 Ohms): 25–100 W

Bass Alignment: Silent Flow Port Technology

Port Tuning Frequency: 47 Hz

Crossover Frequency: LF/HF: 2.9 kHz

Drive Unit Complement: 1 x 6" C-CAM RST III mid-bass driver; 1 x 25 mm C-CAM Gold Dome tweeter

Finishes: High Gloss Black, European Walnut, Satin White

Dimensions With All Accessories Fitted (H × W × D): 18 5/16" x 11 13/16" x 5 5/16" (465 x 300 x 135 mm)

Sold As: Single

Warranty: 5 years

Weight: 19.6 lb. (8.9 kg)
