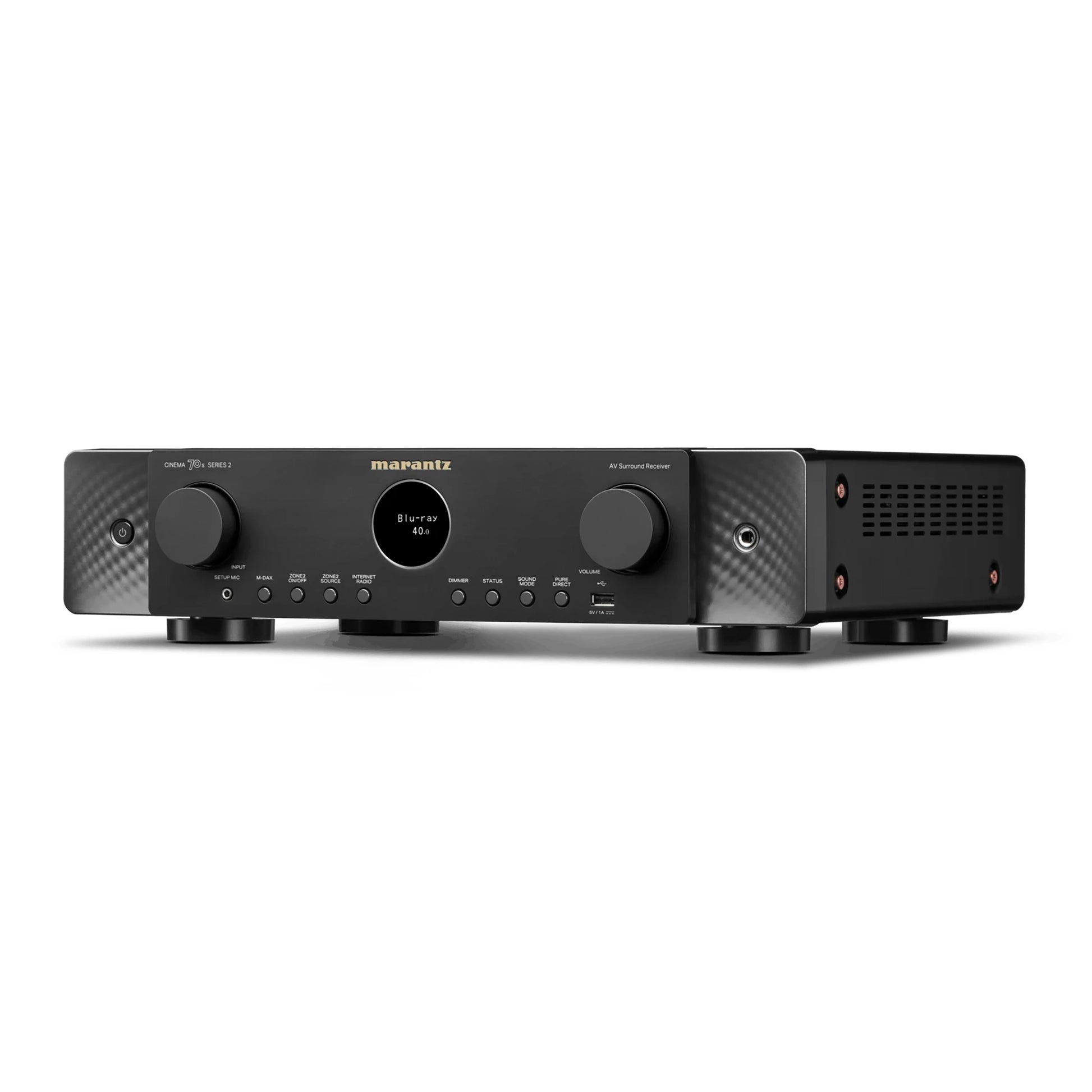

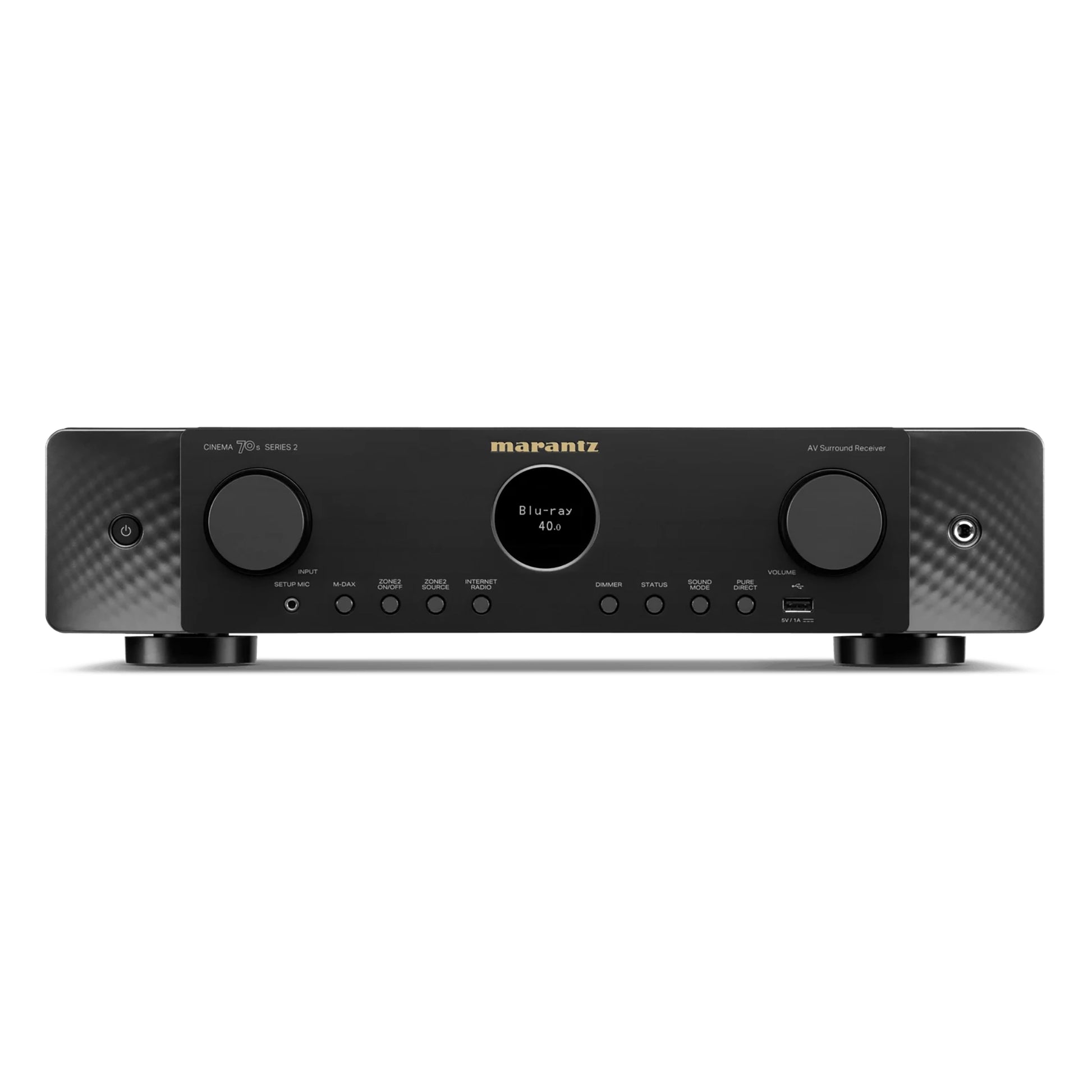

Marantz CINEMA 70s SERIES 2 AV Receiver

Slimline 7.2-channel design with Dolby Atmos, 8K HDMI, HEOS, and an upgraded 32-bit DAC

The Marantz CINEMA 70s SERIES 2 delivers immersive home theater, high-resolution music streaming, and modern gaming features in a slimline chassis measuring just 4.3" high. Its seven discrete amplifier channels produce 50 Wpc into 8 ohms, while Dolby Atmos, DTS:X, and Dolby Atmos Height Virtualization support flexible surround configurations.

For SERIES 2, Marantz has upgraded the receiver with a high-performance 32-bit, 8-channel DAC designed to improve clarity, resolution, and dynamic range. Audyssey MultEQ XT room correction is included, while compatibility with an optional Dirac Live upgrade allows more advanced acoustic optimization.

8K Video and Gaming Support

Six HDMI inputs accommodate a complete entertainment system, with three supporting 8K/60 Hz and 4K/120 Hz signals at up to 40 Gbps. The single HDMI output supports eARC, while HDR10+, Dolby Vision, Dynamic HDR, HLG, Variable Refresh Rate, Quick Frame Transport, Auto Low Latency Mode, and AMD FreeSync provide broad compatibility with current televisions, game consoles, and video sources.

Music Throughout the Home

Powered by HEOS, the CINEMA 70s SERIES 2 can stream music from compatible services and share audio with other HEOS-enabled components throughout the home. It also supports AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready operation, internet radio, and high-resolution files up to 24-bit/192 kHz and DSD 5.6 MHz.

Flexible for Music and Movies

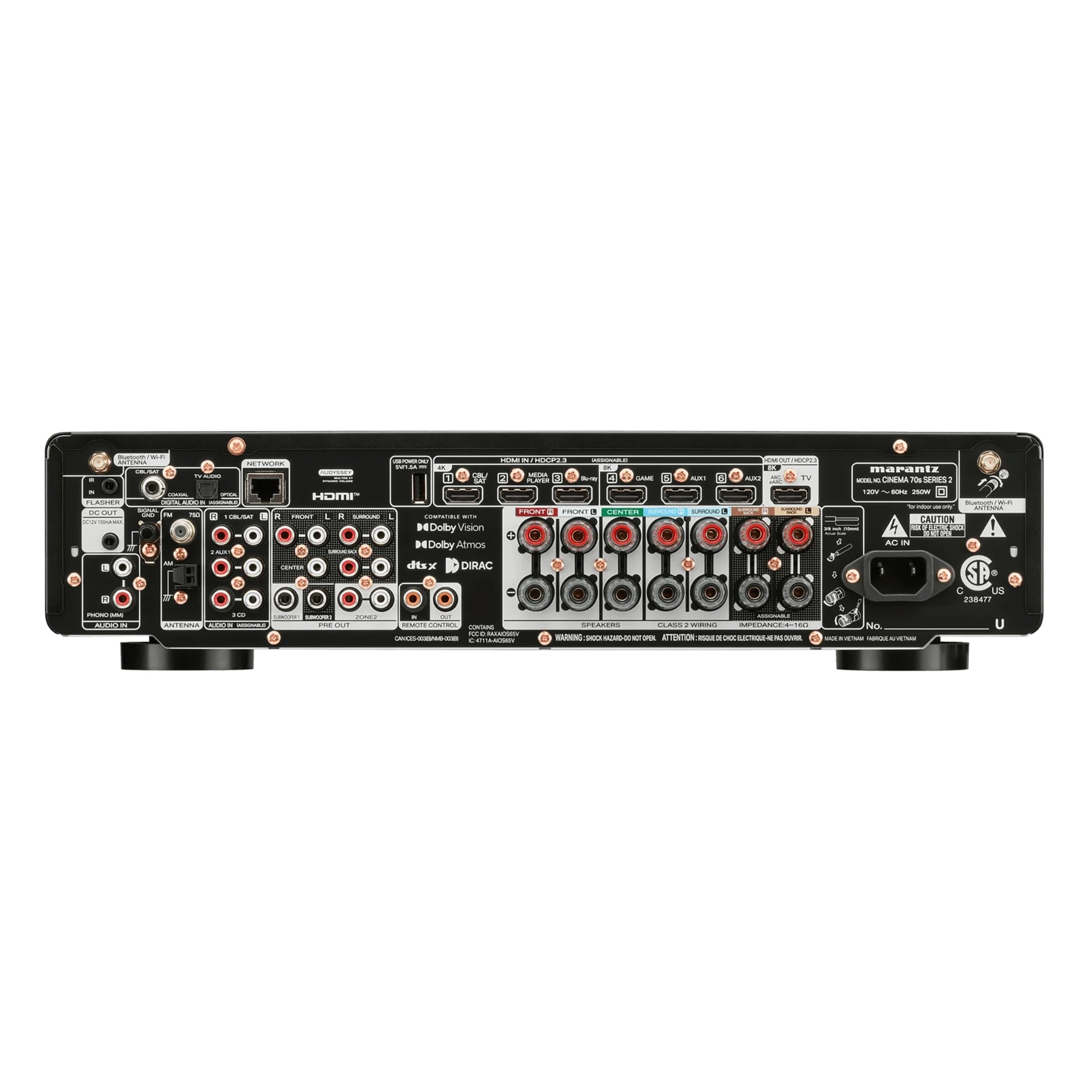

Three analog inputs, optical and coaxial digital inputs, an MM phonostage, and a rear-panel USB port make it easy to connect both current and legacy sources. A complete 7.2-channel preamp output allows the receiver to be paired with external power amplifiers, while dual subwoofer outputs, assignable amplification, bi-amping, and Zone 2 operation provide additional system flexibility.

Features

• Seven discrete amplifier channels rated at 50 Wpc into 8 ohms
• Upgraded 32-bit, 8-channel DAC
• Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and DTS Virtual:X decoding
• Dolby Atmos Height Virtualization and Dolby Atmos Music support
• Audyssey MultEQ XT room correction with Dynamic EQ and Dynamic Volume
• Optional Dirac Live room-correction upgrade
• Six HDMI inputs and one HDMI output with eARC
• Three 40 Gbps HDMI inputs supporting 8K/60 Hz and 4K/120 Hz
• HDR10+, Dolby Vision, Dynamic HDR, and HLG support
• VRR, QFT, ALLM, and AMD FreeSync gaming support
• Powered by HEOS multiroom streaming
• AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz Connect, and Roon Ready
• Bluetooth transmission to compatible wireless headphones
• High-resolution FLAC, WAV, and ALAC playback up to 24-bit/192 kHz
• DSD playback up to 5.6 MHz
• MM phonostage
• 7.2-channel preamp outputs and two subwoofer outputs
• Assignable amplification for bi-amping, Speaker B, or Zone 2
• Compact slimline chassis

Included Accessories

• RC055SR remote control
• Batteries
• Audyssey calibration microphone
• Cardboard microphone stand
• AM and FM antennas
• Two detachable wireless antennas
• Speaker-cable labels
• Quick-start guide
• Power cord

Specifications

Channels: 7.2

Power Amplifiers: 7

Power Output (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven): 50 Wpc

Power Output (6 Ohms, 1 kHz, 0.7% THD, 2 Channels Driven): 70 Wpc

Maximum Processing Channels: 7.1

Surround Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, Dolby Atmos Height Virtualization, Dolby Atmos Music, DTS:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Neural:X, DTS Virtual:X

Room Correction: Audyssey MultEQ XT; Dirac Live upgrade compatible

HDMI Inputs: 6 rear-panel

HDMI Outputs: 1 with ARC/eARC

8K/60 Hz and 4K/120 Hz HDMI Inputs: 3

Maximum HDMI Bandwidth: 40 Gbps

Video Formats: HDR10, HDR10+, Dolby Vision, Dynamic HDR, HLG, 3D

Gaming Features: 4K/120 Hz, VRR, QFT, ALLM, AMD FreeSync

Analog Audio Inputs: 3

Phonostage: MM

Digital Audio Inputs: 1 optical, 1 coaxial

Multichannel Preamp Outputs: 7.2

Subwoofer Outputs: 2

Zone 2 Outputs: Speaker-level and analog preamp

Speaker Terminals: 7

Network Connections: Ethernet and dual-band Wi-Fi

Wireless Connectivity: Wi-Fi, Bluetooth, AirPlay 2

Supported Lossless Formats: FLAC, WAV, ALAC

Maximum PCM Resolution: 24-bit/192 kHz

DSD Playback: 2.8 MHz and 5.6 MHz

USB: 1 rear-panel USB-A input

Tuner: AM/FM

Power Consumption: 250 W

Standby Power Consumption: 0.2 W

Dimensions (W x D x H, Antennas Horizontal): 17.4" x 15.1" x 4.3" (442 x 384 x 109 mm)

Dimensions (W x D x H, Antennas Vertical): 17.4" x 15.1" x 7" (442 x 384 x 178 mm)

Dimensions (W x D x H, Without Antennas): 17.4" x 14.7" x 4.3" (442 x 372 x 109 mm)

Weight: 19.2 lb. (8.7 kg)
