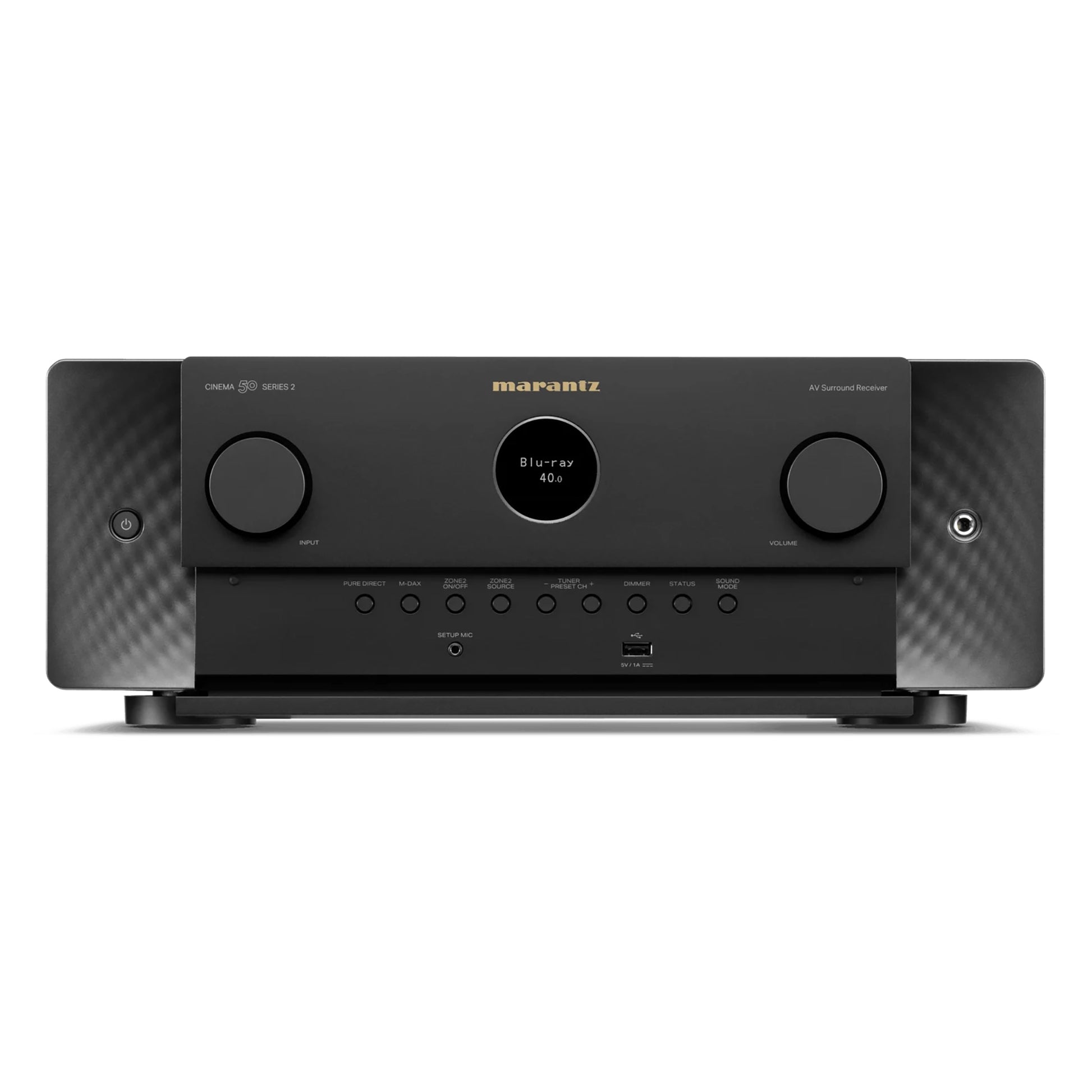

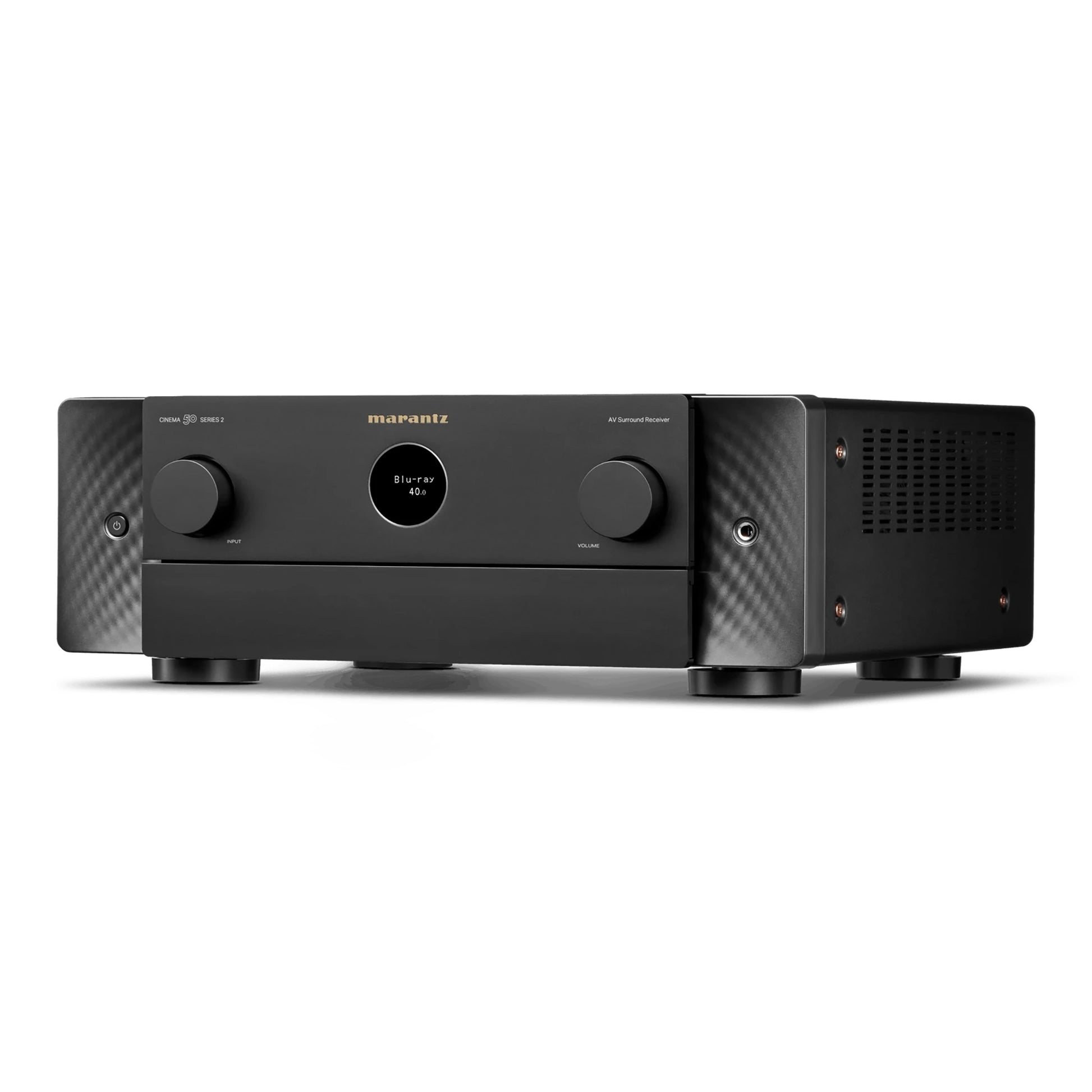

Marantz CINEMA 50 SERIES 2 9.4-Channel AV Receiver w/ Dolby Atmos & Built-in Streaming

110 Wpc, an upgraded 32-bit eight-channel DAC, Dolby Atmos, and HEOS multiroom streaming

Marantz CINEMA 50 SERIES 2 combines nine channels of discrete amplification with immersive surround processing, 8K HDMI connectivity, and integrated music streaming. It delivers 110 Wpc into 8 ohms with two channels driven, making it the central component for a 9.4-channel or Dolby Atmos home theater system. Its 11.4-channel processing and preamp outputs also allow the system to be expanded with an external power amplifier.

The Series 2 design introduces an upgraded 32-bit eight-channel DAC that performs high-resolution conversion across every channel simultaneously. Marantz HDAM-SA2 modules, current-feedback circuitry, and carefully selected components support the receiver’s audio performance, which is tuned by the Marantz Sound Master.

Dolby Atmos, DTS:X, and Flexible Room Correction

CINEMA 50 SERIES 2 decodes Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio, along with Auro-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H. Dolby Atmos Height Virtualization and DTS Virtual:X can create a greater sense of height and space when overhead speakers are not installed.

Audyssey MultEQ XT32 analyzes the listening room using the included calibration microphone and adjusts the system for consistent performance across the listening area. Audyssey Dynamic EQ, Dynamic Volume, and LFC are also included. Dirac Live room correction is available as an optional paid upgrade.

8K Video and Gaming Connectivity

Six HDMI inputs accommodate televisions, disc players, streaming devices, and game consoles. All six inputs support signals up to 8K/60 Hz or 4K/120 Hz at 40 Gbps, while three HDMI outputs allow the receiver to serve two displays in the main room and another display in Zone 2. The main output supports eARC for receiving high-resolution audio from a compatible television.

HDR10, HDR10+, Dolby Vision, HLG, and Dynamic HDR are supported, along with 1080p and 4K upscaling to 8K. Gaming features include Variable Refresh Rate, Auto Low Latency Mode, Quick Frame Transport, and AMD FreeSync compatibility.

HEOS Streaming and Multiroom Audio

Built-in HEOS provides access to services including Amazon Music HD, Qobuz, TIDAL, Spotify Connect, Pandora, SiriusXM, Deezer, iHeartRadio, SoundCloud, and TuneIn internet radio. CINEMA 50 SERIES 2 also supports Apple AirPlay 2, Bluetooth, and Roon, with playback of high-resolution FLAC, WAV, and ALAC files up to 24-bit/192 kHz and DSD up to 5.6 MHz.

HEOS allows compatible products throughout the home to be grouped and controlled from the HEOS app. The receiver can also retransmit audio to Bluetooth headphones with independent transmitter-volume control.

Ready for Expanded Systems

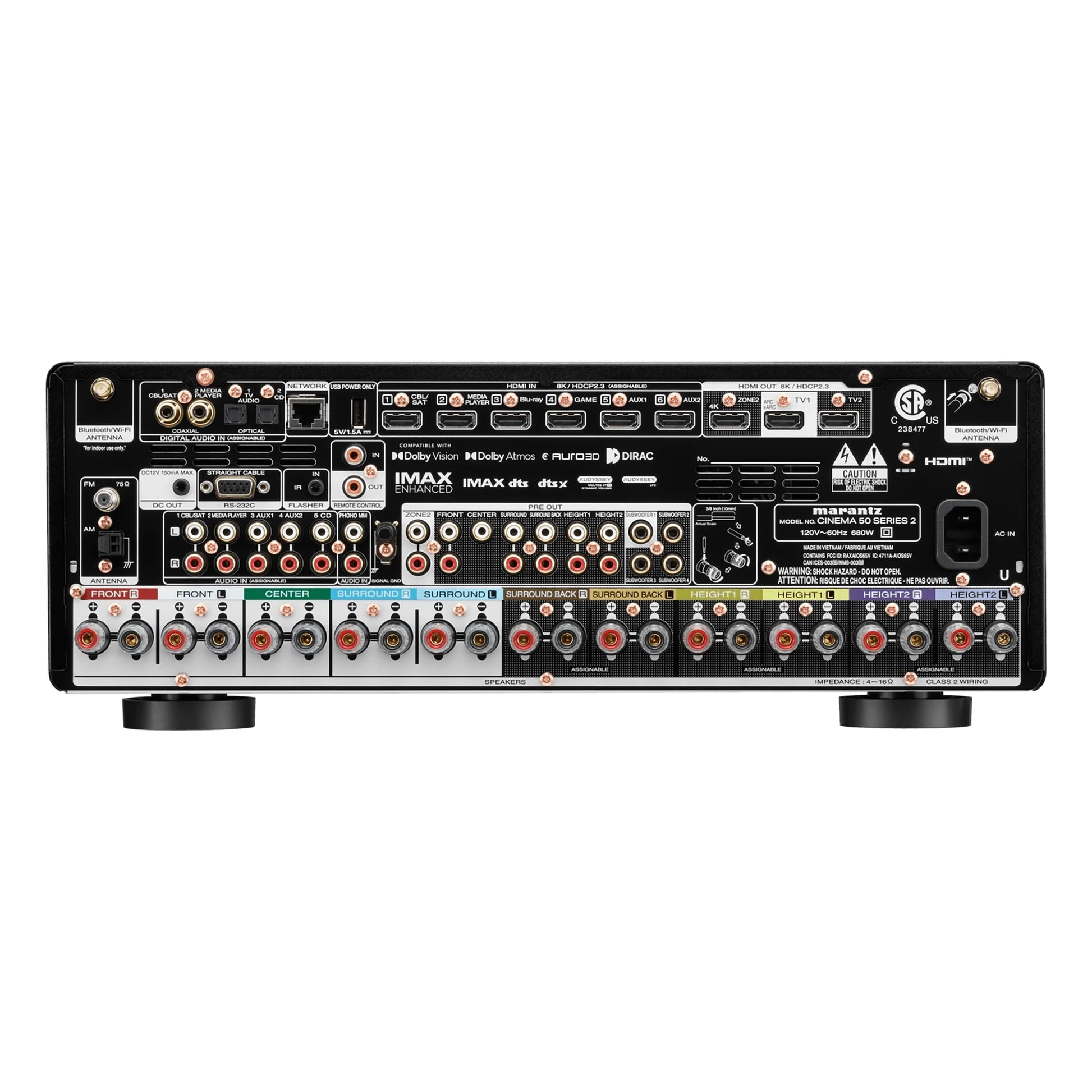

A complete set of 11.4-channel preamp outputs allows CINEMA 50 SERIES 2 to be paired with external power amplifiers. Its nine internal amplifier channels can also be assigned for bi-amping, a second pair of front speakers, or a powered second zone. Five analog inputs, an MM phono input, four digital audio inputs, four independent subwoofer outputs, and an AM/FM tuner accommodate a wide range of sources.

Features

• Nine channels of discrete amplification rated at 110 Wpc
• Upgraded 32-bit eight-channel DAC
• Marantz HDAM-SA2 modules and current-feedback circuitry
• Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
• Auro-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H
• Dolby Atmos Height Virtualization and DTS Virtual:X
• Audyssey MultEQ XT32 room correction
• Dirac Live room correction available as a paid upgrade
• Six HDMI inputs and three HDMI outputs
• Six 40 Gbps inputs supporting 8K/60 Hz and 4K/120 Hz
• HDMI eARC and 8K video upscaling
• HDR10, HDR10+, Dolby Vision, HLG, and Dynamic HDR
• VRR, ALLM, QFT, and AMD FreeSync gaming support
• HEOS multiroom audio and high-resolution streaming
• Apple AirPlay 2, Bluetooth, and Roon Ready
• Bluetooth audio transmission to compatible headphones
• 11.4-channel preamp outputs
• Four independent subwoofer outputs
• MM phono input
• Assignable amplifier channels and Zone 2 support
• Modern HD graphical interface and Setup Assistant

Included Accessories

• RC054SR remote control
• Batteries
• AM/FM antennas
• Speaker-wire labels
• Quick-start guide
• Audyssey calibration microphone
• Cardboard microphone stand
• Two detachable wireless antennas
• AC power cord

Specifications

Product Type: 9.4-channel AV receiver

Power Amplifier Channels: 9

Power Output (8 Ohms, 20 Hz–20 kHz, 0.08% THD, Two Channels Driven): 110 Wpc

Power Output (6 Ohms, 1 kHz, 0.7% THD, Two Channels Driven): 150 Wpc

DAC: 32-bit, eight-channel

Maximum Processing Channels: 11.4

Dolby Processing: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround

DTS Processing: DTS-HD, DTS:X, DTS Neural:X, DTS Virtual:X

Additional Immersive Formats: Auro-3D, IMAX Enhanced, 360 Reality Audio, MPEG-H

Room Correction: Audyssey MultEQ XT32; Dirac Live available as an optional upgrade

Additional Audyssey Processing: Dynamic EQ, Dynamic Volume, LFC

HDMI Inputs: 6 rear-panel

HDMI Outputs: 3, including one with eARC and one Zone 2 output

8K/60 Hz and 4K/120 Hz HDMI Pass-Through: Six inputs, two outputs; up to 40 Gbps

HDMI Scaling: 1080p and 4K to 8K

HDMI Compatibility: HDCP 2.3, eARC, ARC, CEC, Auto LipSync, DSD audio, 3D pass-through, standby pass-through

HDR Formats: HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR

Gaming Features: Variable Refresh Rate, Auto Low Latency Mode, Quick Frame Transport, AMD FreeSync

Analog Audio Inputs: 5

Phono Input: MM

Optical Digital Inputs: 2

Coaxial Digital Inputs: 2

USB Input: 1 front-panel

Multichannel Preamp Outputs: 11.4

Subwoofer Outputs: 4 independent

Zone 2 Outputs: HDMI, speaker-level, and analog preamp

Speaker Terminals: 11, gold-plated

Assignable Amplifier Functions: Speaker A/B, bi-amping, Zone 2

Tuner: AM/FM

Network Connections: Wi-Fi and Ethernet

Wireless Connections: Wi-Fi, Bluetooth, Apple AirPlay 2

Multiroom Platform: HEOS

Streaming Services: Amazon Music, Amazon Music HD, Qobuz, Qobuz Connect, TIDAL, TIDAL Connect, Spotify Connect, Pandora, SiriusXM, Deezer, iHeartRadio, SoundCloud, Mood Mix, TuneIn internet radio

Roon Compatibility: Roon Ready

Lossless Audio Formats: FLAC, WAV, and ALAC up to 24-bit/192 kHz

Lossy Audio Formats: MP3, WMA, AAC

DSD Streaming: DSD64 and DSD128, up to 5.6 MHz

Gapless Playback: FLAC, WAV, ALAC, DSD

Compatible Apps: Marantz AVR Remote, HEOS

Control: IP, RS-232, web, app, IR flasher input, Marantz Remote Bus

DC Trigger Outputs: 1

System Remote Control: RC054SR

Front Panel: Metal

Finish: Black

Power Consumption: 680 W

No-Sound Power Consumption (ECO On/Off): 60 W/100 W

Standby Power Consumption: 0.2 W

CEC Standby Power Consumption: 0.5 W

Network Standby Power Consumption: Less than 2 W

Dimensions With Antennas Horizontal (W x D x H): 17.4" x 15.9" x 6.5" (442 x 404 x 165 mm)

Dimensions With Antennas Vertical (W x D x H): 17.4" x 15.9" x 9.3" (442 x 404 x 235 mm)

Dimensions Without Antennas (W x D x H): 17.4" x 15.5" x 6.5" (442 x 392 x 165 mm)

Weight: 29.8 lb. (13.5 kg)
