Musical Fidelity V90-LPS MM/MC Phonostage

Separate MM and MC inputs, precise RIAA correction, low noise, and a compact footprint

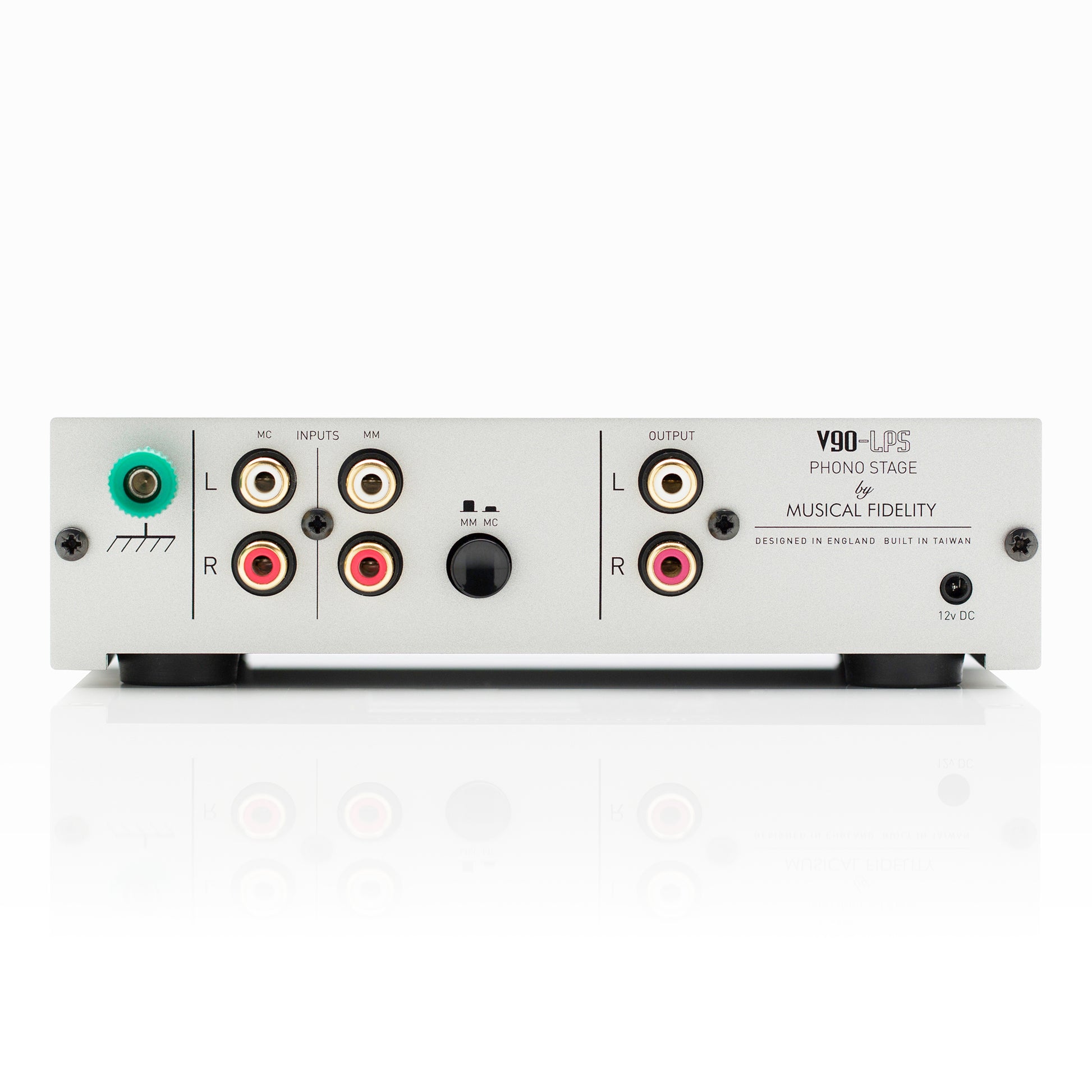

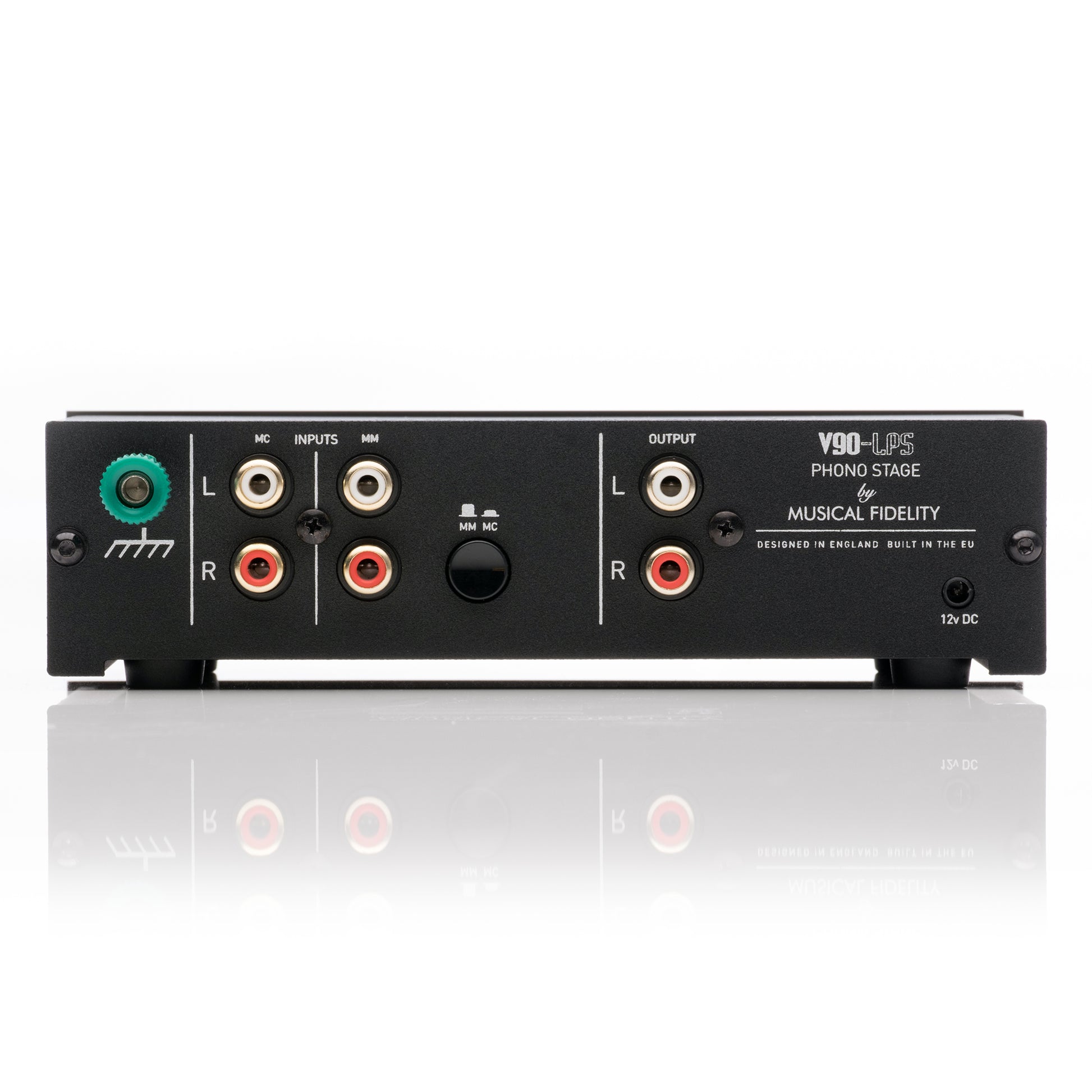

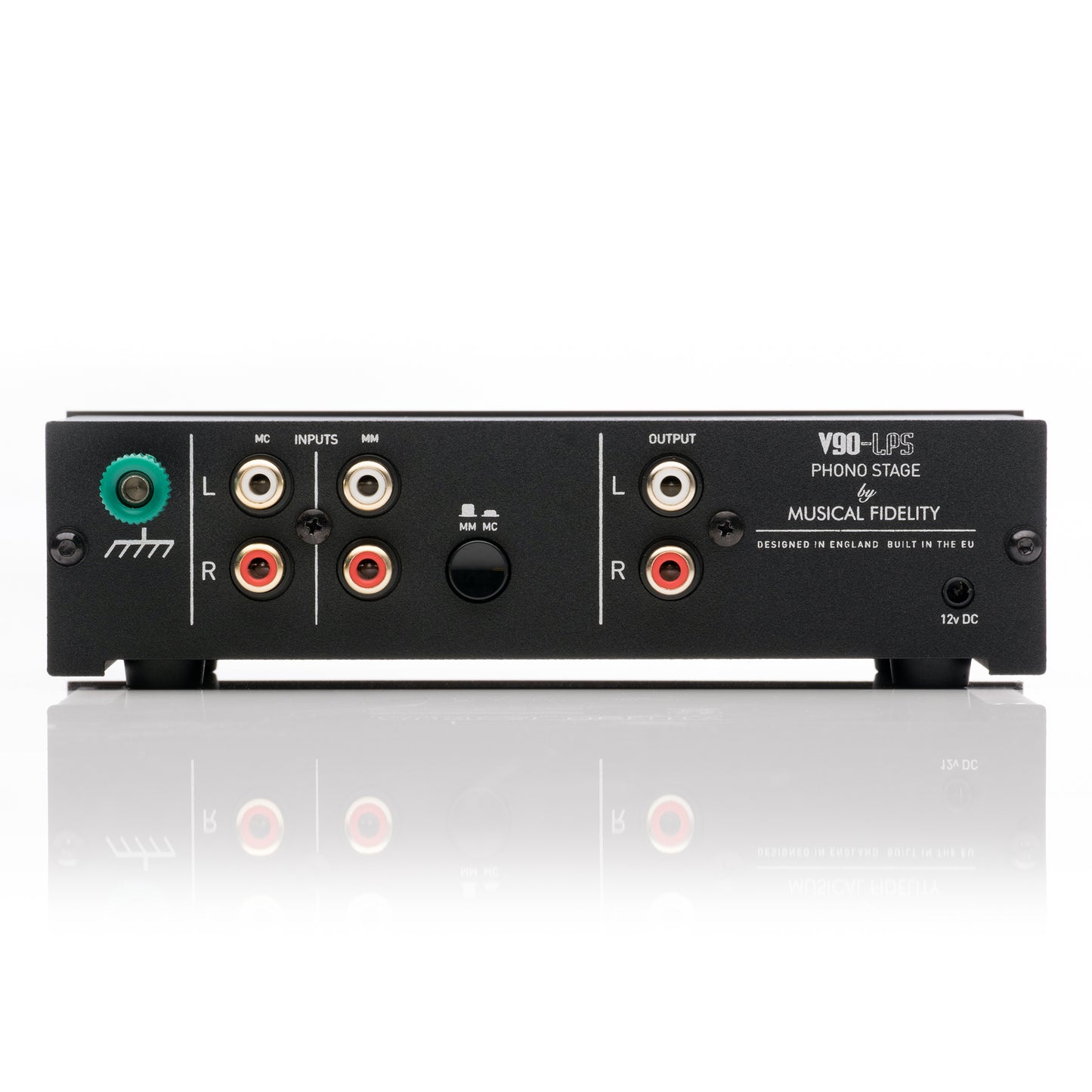

The V90-LPS provides dedicated inputs for moving-magnet and moving-coil cartridges in a compact, affordable design. Separate pairs of RCA inputs serve the two cartridge types, while a rear-panel switch selects the active input. A ground post is also provided for turntables that require an earth connection.

The V90-LPS connects to any standard line-level input on an integrated amplifier or preamplifier. Its low noise, low distortion, and generous overload margin allow it to handle a wide range of cartridge output levels without adding unnecessary complexity to the system.

Accurate RIAA Correction

Musical Fidelity designed the V90-LPS’s RIAA correction to extend well beyond the audible range. Properly correcting this ultrasonic information helps prevent ringing and overshoot within the audible band. RIAA response is rated within ±0.25 dB, while total harmonic distortion is just 0.01% for both MM and MC inputs.

Features

• Dedicated RCA inputs for MM and MC cartridges
• Rear-panel MM/MC input selector
• RIAA correction extending beyond the audible range
• 0.01% total harmonic distortion for MM and MC inputs
• Low-noise circuitry with an A-weighted signal-to-noise ratio greater than 80 dB for MM cartridges
• 15 dB MM and 22 dB MC input overload margins
• Turntable ground post
• Compact 6.69"-wide chassis

Included Accessories

• 12 V, 500 mA DC power supply

Specifications

Input Impedance: 47 kilohms (MM), 100 ohms (MC)

Input Capacitance (MM): 100 pF

Input Sensitivity (For 300 mV Output): 3 mV (MM), 400 μV (MC)

Total Harmonic Distortion (At 1 kHz, 300 mV Output): 0.01% (MM/MC)

Frequency Response (20 Hz–20 kHz): +0/–0.1 dB

Signal-to-Noise Ratio (A-Weighted): >80 dB (MM), >70 dB (MC)

Input Overload Margin: 15 dB (MM), 22 dB (MC)

RIAA Response: ±0.25 dB

MM Inputs: 1 pair RCA

MC Inputs: 1 pair RCA

Outputs: 1 pair RCA

Power Requirement: 12 V DC, 500 mA

Dimensions (W × H × D): 6.69" × 1.85" × 4.02" (170 × 47 × 102 mm)

Weight: 1.32 lb. (0.6 kg)
